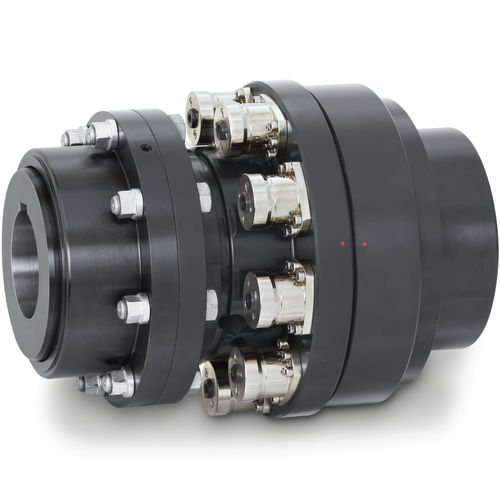

Gear coupling ST4 seriestorque
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Other characteristics
- torque
- Torque
Min.: 200 Nm
(147.51243 ft.lb)Max.: 250,000 Nm
(184,390.537319 ft.lb)- Rotational speed
Min.: 950 rpm
(5,969.026 rad.min-1)Max.: 4,000 rpm
(25,132.7412 rad.min-1)
Description
Safety coupling with robust gear coupling
Properties
high torque density
puncture proof
low restoring forces
Temperature range
-30 °C to +120 °C (-22 °F to +248 °F)
Design
with keyway connection (spline profile on request)
gear coupling for misalignment compensationi
safety elements evenly spaced around the circumference
field adjustable within the selected range
Material
Safety coupling portion: hardened steel (nitrocarburized surface)
flexible gear coupling on both side: wear resistant high strength alloy steel (nitrocarburized surface)
