Bellows couplings

Torque: 0.39 Nm - 9.99 Nm
Rotational speed: 15,000 rpm

Bellows Style (BWC and BWLC Series) High torsional stiffness All metal (aluminum hub, stainless steel bellow) No maintenance required Low reactionary loading; low inertia

Torque: 1 Nm - 600 Nm

The Metal bellows coupling is equipped with a hub that is made from aluminum and bellows made from stainless steel. This coupling requires short assembly time and an ...

Torque: 0.4 Nm - 3 Nm
Rotational speed: 7,000, 9,000, 5,500 rpm

The CHP plastic bellows coupling is a specially developed coupling for applications where extreme angular compensation is required. This coupling achieves a maximum angular ...

Torque: 30 Nm - 450 Nm
Rotational speed: 10,000 rpm

BKC - Metal Bellows Couplings provide the ideal complement to Magtrol’s TM/TMB/TMHS/TS In-Line Torque Transducers and Sensors, when these are to be mounted in a drive train. The torque transmission element ...

Torque: 36 Nm - 5,000 Nm
Rotational speed: 2,800 rpm - 11,000 rpm

Metal bellows couplings from the 'AK' series have been designed especially for the backlash-free transmission of high torques of up to 5,000 Nm. The elements are mounted on driver and driven components ...

Torque: 22 Nm - 800 Nm
Rotational speed: 4,900 rpm - 12,700 rpm

... units Linear units Packaging machines Machine tools Special machines Series AKD Metal bellows coupling with clamping hubs Characteristics Metal bellows made of stainless steel, ...

Torque: 22 Nm - 600 Nm
Rotational speed: 4,900 rpm - 12,700 rpm

GWB AKN The metal bellows couplings from the 'AKN' series boast trusted quality and increased torsional stiffness. The reduced shafts in the element guarantee for high stiffness while at the same time ...

Torque: 0.05 Nm - 10 Nm

Miniature Metal Bellows Coupling with set screws  • Backlash-free miniature metal bellows coupling with radial set screws  • For shaft diameters from 1 – 24 ...

Torque: 0.1 Nm - 10 Nm

... Perfect bellows coupling for encoders, tachometers, potentiometers, servo drives, NC axis, stepper motors  • Torque range: 0,1 – 10Nm Miniature Metal Bellows Coupling ...

Torque: 18 Nm - 1,500 Nm

Metal Bellows Coupling with collet clamps  • Backlash-free metal bellows coupling with clamp hubs  • Hub material: up to 60Nm – aluminum, up from 80Nm - steel  ...

Torque: 0.3 Nm - 80 Nm
Rotational speed: 4,000 rpm - 20,000 rpm

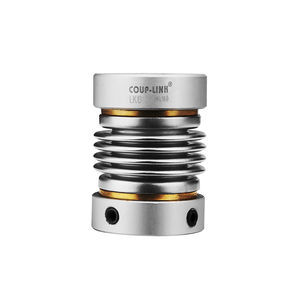

LK6 Series Clamp Type（Bellows） · High torque capacity and excellent response - · Zero backlash - · Spring action bellows configuration absorbs paralle、angular misalignments and shaft end-play ...

Torque: 0.2 Nm - 25 Nm
Rotational speed: 6,000 rpm - 28,000 rpm

LK6 Sériés Setscrew Type (Bellows) • High torque capacity and excellent response • Zéro backlash • Spring action bellows configuration absorbs parallel, angular misalignments and shaft end-play • ...

Torque: 10, 25, 60, 80 Nm
Rotational speed: 4,500, 5,000, 6,000, 8,000 rpm

LK14 Series Locking Assemblies Coupling（Bellows） · Using locking assemblies connect ,bellows type flexible coupling - · Zero backlash - · Spring action ...

Torque: 20 Nm - 1,800 Nm

... design on both sides • steel hub - welded design - temperatures up to 350°C • customized length with 2-, 4- or 6-corrugation bellows • Torque range: 20 - 1800 Nm • Shaft diameter: 8 - 85 mm

Torque: 30 Nm - 1,000 Nm

• steel hub - welded design - temperatures up to 350°C • 2-, 4-, or 6-corrugation bellows - short design - high torsional stiffness • Torque range: 30 - 1.000 Nm • Shaft diameter: 10 - 90 mm • stainless steel

Torque: 40 Nm - 1,300 Nm

... radial EASY-clamping hub on both sides • steel hub - welded design - temperatures up to 350°C • 2-, 4- or 6-corrugation bellows - short design - high torsional stiffness • Torque range: 40 - 1.300 Nm • Shaft diameter: ...

Torque: 0.3 Nm - 2 Nm
Rotational speed: 19,000 rpm - 52,000 rpm

... is a bellows type flexible coupling. The bellows allows eccentricity, angular misalignment, and end-play. Even if there is misalignment, the constant revolution is performed. Ideal ...

Torque: 0.5 Nm - 6 Nm
Rotational speed: 19,000 rpm - 52,000 rpm

... is a bellows type flexible coupling. The bellows allows eccentricity, angular misalignment, and end-play. Even if there is misalignment, the constant revolution is performed. Ideal ...

Torque: 1.5, 2.3, 4.5, 10 Nm
Rotational speed: 33,000, 23,000, 19,000, 15,000 rpm

MBB-C is a bellows type flexible coupling. The bellows allows eccentricity, angular misalignment, and end-play. The bellows is stainless steel. Application Actuator ...

Torque: 0.8 Nm - 200 Nm
Rotational speed: 3,000 rpm - 9,400 rpm

The Bellow flexible coupling is designed and manufactured by Chinabase. It has a same clockwise and anticlockwise rotational functions and has a zero backlash. This flexible coupling ...

Torque: 0.45 Nm - 5.2 Nm
Rotational speed: 70,000 rpm

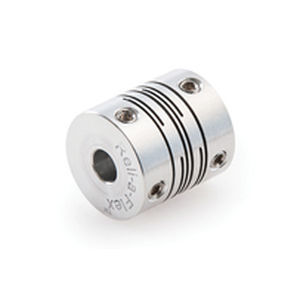

Reli-a-Flex™ Shaft (Beam) Couplings Reli-a-Flex™ Couplings: The Reli-a-Flex™ range of flexible shaft couplings, also known as a beam coupling, is an aluminium alloy ...

Torque: 13 Nm - 200 Nm

... The couplings are available with three construction options: nickel, stainless steel and bronze. For the highest accuracy, nickel bellows couplings; for torque transmission, stainless ...

Metal bellows coupling We design, size and manufacture bellows coupling able to guarantee the compensation of shaft misalignments.

Torque: 0 Nm - 10 Nm
Rotational speed: 0 rpm - 33,000 rpm

Bellows couplings GN 2244 transmit angle positions and torques with extreme precision and zero backlash. The metal bellows also reliably compensates for shaft misalignments and runout ...
