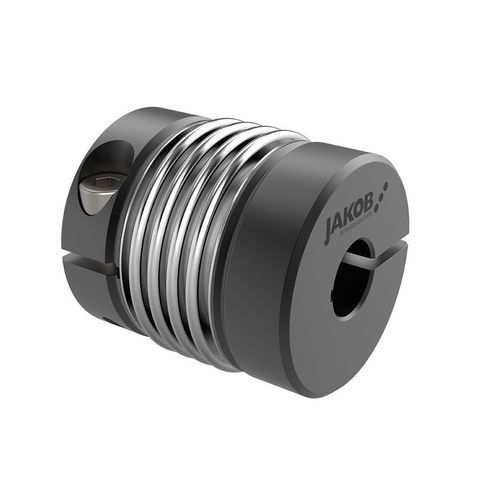

Torsionally-rigid flexible shaft coupling MKGminiaturemetal bellowsindustrial
Add to favorites
Compare this product
Characteristics
- Type
- torsionally-rigid flexible
- Construction
- miniature, metal bellows
- Product applications
- industrial
- Torque
5 Nm, 10 Nm, 20 Nm
(3.687811 ft.lb, 7.375621 ft.lb, 14.751243 ft.lb)- Rotational speed
Max.: 20,000 rpm
(125,663.7061 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
• simple installation with optional radial EASY-clamping hub on both sides
• steel hub - welded design - temperatures up to 300°C
• 2-, 4- or 6-corrugation bellows - short design - high torsional stiffness
• Torque range: 5 - 20Nm
• Shaft diameter: 6 - 20 mm
» KG-VA = stainless steel optional
