Torsionally rigid couplings

Torque: 0 Nm - 3,000 Nm
Rotational speed: 3,000 rpm - 10,000 rpm

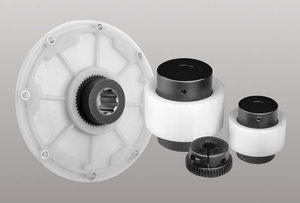

The LF Series coupling is designed with a unique and highly versatile elastomeric element. These can be easily integrated into a variety of coupling configurations to meet several application needs. LF ...

Torque: 0 Nm - 655 Nm
Rotational speed: 2,100 rpm

Torsional Coupling The LVK Series is designed for direct coupled equipment. The LVK Series coupling is highly torsionally compliant, allowing the engine to drive a large inertia load ...

Torque: 0 Nm - 1,223 Nm
Rotational speed: 2,000 rpm

Torsional Coupling The LV Series coupling is designed and built for diesel engine driven equipment such as agricultural and offroad equipment using universal joint drive shafts. The ...

Torque: 1,000 Nm - 560,000 Nm
Rotational speed: 1,200 rpm - 1,200 rpm

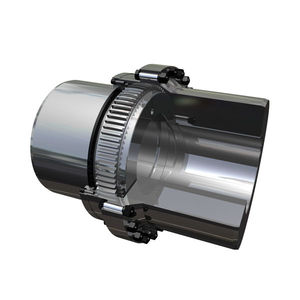

Torsional rigid coupling, the flexibility of which is guaranteed by crowned gear teeth profile Applications High Speed shaft - low speed shaft of machinery requiring synchronous transmission of high ...

Torque: 35 Nm - 150 Nm
Rotational speed: 7,800 rpm - 22,500 rpm

couplings are shaft connections and transmit torsionally stiff and backlash-free torque. At the same time, they compensate for angular and axial misalignments in single-jointed couplings ...

Torque: 35 Nm - 110,000 Nm
Rotational speed: 2,300 rpm - 22,500 rpm

couplings connect shafts. They transmit torques in a torsionally rigid and backlash-free manner. Single-jointed couplings (Type 950._ _ _) compensate for angular and ...

Torque: 190 Nm - 10,000 Nm
Rotational speed: 8,000 rpm - 30,000 rpm

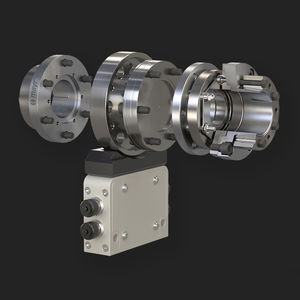

Backlash-free shaft couplings for torque transducers Torsionally stiff Flexible modular system Backlash Free Compensation of shaft misalignment Continuous temperature up to 120°C Product features Application For ...

Torque: 10 Nm - 380 Nm

Gear Couplings with continuous sleeve, double engagement gearing Features : - Compensation of axial, radial and angular misalignments - Double engagement allows smooth torque transmission - Deployable in horizontal ...

Torque: 96 Nm - 18,700 Nm
Rotational speed: 3,600 rpm - 7,500 rpm

Disc Couplings with double disc packs with spacer Features : - Nominal torques up to 13 300 Nm - Combines high torque capacity with low weight - Backlash free - Compensation of axial, radial and angular misalignments ...

Torque: 580 Nm - 70,000 Nm

Cone Clamping Elements RLK 130 centres the hub to the shaft very high transmissible torque Features - Centres the shaft to the hub - Very high transmissible torques - For shaft diameters between 20 mm and 180 mm

Torque: 48 Nm - 36,450 Nm
Rotational speed: 1,500 rpm - 7,000 rpm

Couplings with rubber elements that can be disassembled from one side. The rubber elements can be replaced without removing the coupled components by simply disassembling the coupling crown wheel. Made ...

Torque: 1,330 Nm - 391,500 Nm
Rotational speed: 1,450 rpm - 8,000 rpm

... Compact design due to inside turned hubs - Complies with the AGMA standard (American Gear Manufacturer Association) up to coupling size 0090 - High power to weight ratio Typical application - Roll drives in the ...

Torque: 64 Nm - 13,300 Nm
Rotational speed: 3,600 rpm - 7,500 rpm

with single disc pack Features - Combines high torque capacity with low weight - Backlash free - Compensation of axial and angular misalignments - High torsional rigidity with low axial rigidity - Temperature range -20 °C to +280 ...

Torque: 320 Nm - 12,500 Nm
Rotational speed: 14,000 rpm - 33,000 rpm

Torsionally Rigid Coupling for Test Benches. The FLEXDUR - HighSpeed (short form: FD-HS) All-metal couplings are developed and manufactured to the highest standards, ...

Torque: 18 Nm - 130,000 Nm
Rotational speed: 2,100 rpm - 11,500 rpm

Torsionally rigid, flexible coupling The coupling uses bushed flexible disc packs of stainless spring steel as power transmitting elements. The special shape of the ...

Torque: 300 Nm - 5,000 Nm

Torsionally Stiff Flange Couplings for Pump Drives. With RCT couplings REICH offers an optimal drive solution for the connection of diesel engines to hydraulic pumps. Due to the torsionally ...

Torque: 100 Nm - 150,000 Nm

Universal Joint Shaft Couplings Fits standard DIN UJ (Universal Joint) companion flanges. Release torque is adjustable by Wedgepin ratings. The maximum release torque is based on maximum Wedgepin ...

Torque: 10, 25, 2.2 Nm
Rotational speed: 3,500, 4,000, 3,000 rpm

This universal joint coupling is equipped with special plain bearings and two aluminum hubs to transmit high forces with an angular misalignment of up to 4°. Due to the high-precision fit of pins and ...

Torque: 30 Nm - 450 Nm
Rotational speed: 10,000 rpm

... hubs. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment when connecting two shaft ends. The high torsional spring rate of the couplings ...

Torque: 1,750 Nm - 195,000 Nm
Rotational speed: 1,800 rpm - 6,000 rpm

Gear Couplings TNZ ZCA / TNZ ZCB Standard hubs The RINGFEDER® TNZ ZCA coupling is a torsionally stiff gear coupling designed to have some backlash and consists of ...

Torque: 1,750 Nm - 195,000 Nm
Rotational speed: 1,800 rpm - 6,000 rpm

... 390,000 Nm Speeds up to nmax = 6,000 rpm General description The RINGFEDER® TNZ coupling is a torsionally rigid twin cardanic gear coupling. Toothing The coupling ...

Torque: 1,750 Nm - 195,000 Nm

Gear Couplings TNZ ZCAF / TNZ ZCBF Intermediate shaft and rigid counter-flanges The model RINGFEDER® TNZ ZCAF is composed from the coupling halves of the coupling ...

Torque: 0 Nm - 5 Nm
Rotational speed: 0 rpm - 8,000 rpm

... Corrosion proof HKD metal multiple disc couplings compensate a parallel misalignment up to ±0.5 mm and an axial misalignment up to ±1 mm as well as extending the service life of encoders in the process. Double joint couplings ...

Torque: 100 Nm
Rotational speed: 12,000 rpm

... corrosion-resistant HKI metal multiple disc couplings compensate for increased parallel misalignment up to ±1 mm and increased axial misalignment up to ±2 mm, thus extending the service life of tacho generators. The ...

Torque: 8 Nm
Rotational speed: 22,000 rpm

... and corrosion-resistant CPS plug-in couplings compensate for increased parallel misalignment up to ±2 mm and increased axial misalignment up to ±1.5 mm, thus extending the service life of encoders. CPS plug-in couplings ...

Torque: 0.1 Nm - 2,800 Nm

Safety coupling SK2 With clamping hub and 1 radial screw. • Absolutely backlash-free and torsionally rigid • easy mounting and dismounting • adjustable settings ...

Torque: 0.6 Nm - 200 Nm
Rotational speed: 6,000 rpm - 42,000 rpm

... Actuator / Surface-mount machine / High precision XY stage / Index table Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service Please ...

Torque: 0.42 Nm - 14 Nm
Rotational speed: 11,000 rpm - 42,000 rpm

... Actuator / Surface-mount machine / High precision XY stage / Index table Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service Please ...

Torque: 0.42 Nm - 14 Nm
Rotational speed: 11,000 rpm - 42,000 rpm

... Actuator / Surface-mount machine / High precision XY stage / Index table Optional Services -Couplings Bore and Keyway Additional Modification Service -Coupling Stainless Steel Screw Alteration Service Please ...

• Torsionally rigid, positive coupling for diesel engine drives of hydraulic pumps • Short installation lengths • Simple plug-in installation of hub and fl ange without aligning tools • ...
