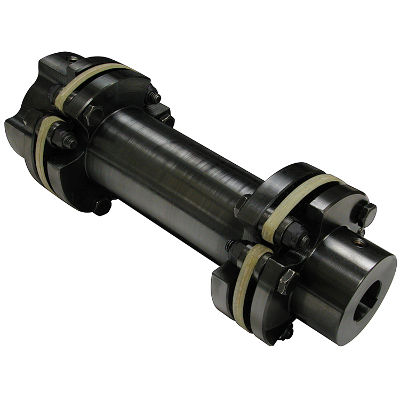

Flexible coupling 6F22 disctorsionally rigidgear
Add to favorites
Compare this product
Characteristics
- Type
- flexible, disc, torsionally rigid, gear, pin and bush
- Construction
- compact, shaft-hub, stainless steel, aluminum, with floating shaft, threaded shaft collar
- Product applications
- for mechanical power transmission, transmission, for medical devices, for the aerospace industry, for the packaging industry, shaft, for pump, for paper machines, for machine tools, motor, for robotics, for servo motors, for agitators, blower, for the food industry, for blowers, for mixers, for robots, for test benches, for coordinate measuring machines, for printing machines, for the textile industry, for spindles, turbine, for heavy loads
- Performance
- zero-backlash, maintenance-free, high-performance, high-speed, high-torque, heavy-duty
- Other characteristics
- misalignment correction, custom-made, compensating
- Installation system
- sleeve, set screw
- Torque
Max.: 1,164 Nm
(858.522342 ft.lb)Min.: 30 Nm
(22.126864 ft.lb)
Description
Setscrew Hub CD Floating Shaft Couplings are ideal for applications where the drive and load components require further spacing from each other. This unique design is torsionally stiff and delivers zero-backlash, superior misalignment capacity, and can be custom manufactured to any length requirement.
Zero-Max’s Setscrew Hub Floating Shaft Couplings use a traditional key/keyway connection to transmit power. This offers good holding power and easy installation. Clamp-Style hubs are also available on Zero-Max Composite Disc Floating Shaft Couplings.
Zero Backlash
Torsionally Stiff
High Misalignment Capacity
Excellent for Reversing Loads
Very Low Reaction Loads
Available in Aluminum, Steel, or Stainless Steel
