Flexible coupling 6P18
disctorsionally rigidgear

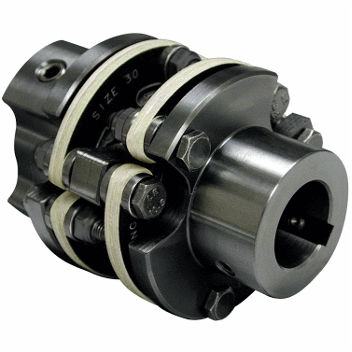

Flexible coupling - 6P18 - ZERO-MAX - disc / torsionally rigid / gear
Flexible coupling - 6P18 - ZERO-MAX - disc / torsionally rigid / gear
Add to favorites
Compare this product

Characteristics

Type
flexible, disc, torsionally rigid, gear, pin and bush
Construction
compact, shaft-hub, double, double-jointed
Product applications
for mechanical power transmission, transmission, for paper machines, shaft, motor, for servo motors, for agitators, for test benches, for coordinate measuring machines, for the packaging industry, for machine tools, for the food industry, for mixers, turbine, for the textile industry, for medical devices, for spindles, for robotics, for printing machines, for the aerospace industry, for heavy loads
Performance
zero-backlash, maintenance-free, high-performance, high-speed, low noise and vibration, high-torque, heavy-duty
Other characteristics
misalignment correction, custom-made, compensating
Installation system
sleeve, set screw
Torque

Max.: 5,333 Nm
(3,933.418942 ft.lb)

Min.: 20 Nm
(14.751243 ft.lb)

Rotational speed

Max.: 14,000 rpm
(87,964.5943 rad.min-1)

Min.: 2,100 rpm
(13,194.6891 rad.min-1)

Description

Steel Double-Flex set screw hub Composite Disc (CD®) Couplings provide a robust and durable design with higher misalignment capacity compared to our Single Flex Couplings. Double-Flex set screw style steel hub couplings are ideal for applications that require high torsional stiffness, large misalignment capacity, and overall high performance Double Disc Set Screw Hub CD Coupling Advantages The Double-Flex set-screw style hub CD Couplings from Zero-Max are manufactured from high-quality and durable steel material. Utilizing a traditional set screw style hub, these flexible shaft couplings offer a cost-effective solution that is inter-changeable with many existing couplings. Composite Disc double-flex coupling benefits include the following: Zero Backlash High Torsional Stiffness Extremely High Misalignment Capacity Excellent for Reversing Loads Smooth Operating at High Speeds Very Low Reaction Loads on shaft bearings due to misalignment Steel Set Screw Hub CD Coupling Applications When you need a high-performance CD Coupling that offers significant advantages, Zero-Max’s Double Disc Flexible Shaft couplings provide a premium option for the following applications: Packaging Machines Pick and Place Systems Printing Machinery Machine Tools Systems that utilize servo motors
