- Compensating coupling
Compensating couplings
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
Quick-fit couplings GN 240.1 have been designed for the purpose of compensating a radial shaft off-set (x). A typical application is the axial link to a piston rod of a cylinder operating in any type ...
Torque: 30 Nm - 48,600 Nm
Rotational speed: 1,200 rpm - 12,500 rpm

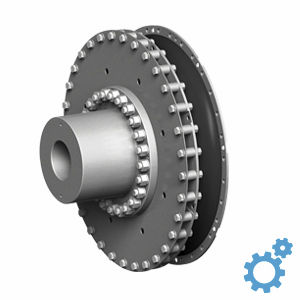

Torsionally flexible coupling for electric motor driven high-speed shaftsi The FLEXOMAX G is a torsionally flexible coupling fitted with compressible flexible elements. The coupling’s ...
VULKAN Marine
Torque: 3,600 Nm - 644,400 Nm
Rotational speed: 650 rpm - 7,000 rpm

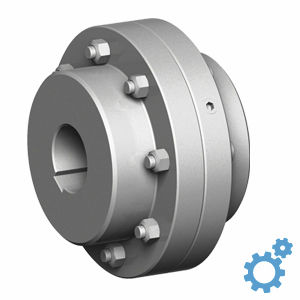

... Radial removability of the coupling without having to move the connected machinery Possibility of integrating braking discs or pulleys within the coupling Design Available in different designs (G/GSN/GBN) ...
VULKAN Marine
Torque: 3,000 Nm - 20,023 Nm
Rotational speed: 1,900 rpm - 16,000 rpm

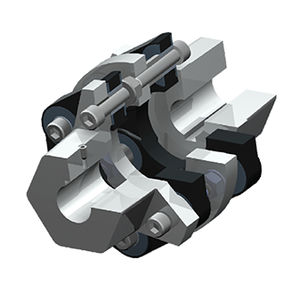

Torsionally flexible jaw coupling for electric motor driven high-speed shafts The FLEXOMAX GSN is a torsionally flexible coupling fitted with compressible flexible elements. It compensates axial, angled ...
VULKAN Marine
Torque: 35 Nm - 150 Nm
Rotational speed: 7,800 rpm - 22,500 rpm
... technical specifications. ROBA-DS couplings are shaft connections and transmit torsionally stiff and backlash-free torque. At the same time, they compensate for angular and axial misalignments in single-jointed couplings ...
Chr. Mayr GmbH + Co. KG
Torque: 4 Nm - 2,080 Nm
Rotational speed: 3,000 rpm - 28,000 rpm
... . ROBA® -ES couplings connect shafts in highly dynamic servo drives. They transmit torques elastically and backlash-free. Single-jointed couplings (type 940.___) compensate for axial and angular misalignment, ...
Chr. Mayr GmbH + Co. KG
Torque: 16 Nm - 700 Nm
Rotational speed: 2,500 rpm - 10,000 rpm
... at www.mayr.com and adapt the product optimally to your technical specifications. smartflex® are plug-in metal bellows couplings They connect shafts and transmit torques torsionally stiff and backlash-free. They compensate ...
Chr. Mayr GmbH + Co. KG
Torque: 7.5 Nm - 2,400 Nm
Rotational speed: 1,500 rpm
The RA or RG shaft couplings are particularly torsional flexible. They compensate smaller angular, radial and axial shaft displacements. They protect worm ger screw jacks, bevel gearboxes and motors thanks to their shock ...
Torque: 2 Nm - 8,000 Nm
Rotational speed: 1,050 rpm - 13,000 rpm
Hub with keyway Features Compact design Small dimensions Electrical insulation No stick-slip action Large radial shaft misalignment permissible Torsionally rigid Minimal restoring forces on adjacent machine parts Typical application Printing ...
RINGSPANN
Torque: 1,330 Nm - 391,500 Nm
Rotational speed: 1,450 rpm - 8,000 rpm
... Compact design due to inside turned hubs Complies with the AGMA standard (American Gear Manufacturer Association) up to coupling size 0090 High power density Complies with ATEX 2014/34/EU Typical application Roll ...
RINGSPANN
Torque: 96 Nm - 18,700 Nm
Rotational speed: 3,600 rpm - 7,500 rpm
with double disc packs, design according to API 610 Features High torque capacity Backlash free Compensation of axial, radial and angular misalignments Double disc pack allows smooth torque transmission High torsional rigidity ...
RINGSPANN
Torque: 15,000 Nm
Rotational speed: 19,000 rpm

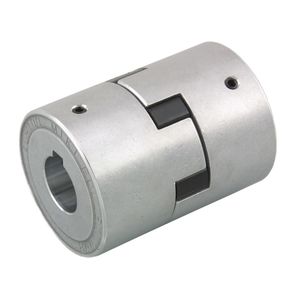

Spider couplings, also known as jaw couplings, are torsionally flexible shaft couplings which enable the connection of shafts or flanges via a polyurethane drive ring. Parallel, angular ...
jbj Techniques Limited
Torque: 10 Nm - 2,400 Nm
Rotational speed: 2,400 rpm - 8,000 rpm
These steel gear hub / nylon drive sleeve gear couplings are designed to release neighbouring shaft bearings from non-controlled additional bearing loads. Maximum shaft diameters of 100 mm can be accommodated with ...
jbj Techniques Limited
Torque: 125 Nm - 6,000 Nm
Rotational speed: 1 rpm - 6,000 rpm
... applications with diesel, gasoline or natural gas engines which drive one or more flange-mounted hydraulic pumps. LK torsional couplings are usable with all engine-driven hydrostatic applications in the low to mid ...
jbj Techniques Limited
Torque: 0.5 Nm - 100 Nm
Rotational speed: 15,000 rpm
Metal bellows couplings, mini with grub screw MATERIAL Hub aluminium. Bellows stainless steel. VERSION Bright. NOTE Play-free mini metal bellows coupling with high torsional stiffness. The ...
Torque: 8 Nm - 900 Nm
Rotational speed: 4,000 rpm - 13,000 rpm
Elastomer dog couplings with clamp hubs, stainless steel MATERIAL Hub stainless steel. Coupling spider polyurethane. VERSION Hub bright. Coupling spider blue Shore 80A. Coupling ...
Quick-fit couplings with radial offset compensation Material: Coupling part and claw in steel. Nut (DIN 439) in steel, grade 8.8. Version: Coupling part and claw tempered and phosphated. Nut ...
Torque: 20 Nm - 1,164 Nm
Rotational speed: 4,100 rpm - 12,000 rpm
The Double Flex 6P-C version of the backlash-free composite disc coupling enables the compensation of very high shaft misalignments in axial and parallel direction. The compact design of the double cardanic version allows ...
ZERO-MAX Europe
Torque: 20 Nm - 5,333 Nm
Rotational speed: 2,100 rpm - 14,000 rpm
The Double Flex 6P backlash-free version of the backlash-free composite disc coupling in double-cardanic design enables the compensation of very high shaft misalignments in axial and parallel alignment. As standard, the ...
ZERO-MAX Europe
Torque: 20 Nm - 282 Nm
Rotational speed: 6,700 rpm - 15,000 rpm
Die doppelkardanische Double Flex 6P-A1C Version der spielfreien Composite Disc Kupplung ermöglicht den Ausgleich sehr hoher Axial- und Parallelversätze. Das kompakte Aluminiumklemmnabendesign der doppelkardanischen Ausführung bietet ...
ZERO-MAX Europe
Torque: 100 Nm - 10,000 Nm
Rotational speed: 1,800 rpm - 10,000 rpm
TOK Coupling System TOK Coupling System * Elements available in different torsional stiffnesses * Suited for highest speeds * Adaptation to DIN or SAE flanges or according to specification * Self-centering, ...
REICH-Kupplungen
Torque: 63 Nm - 1,000,000 Nm
Rotational speed: 750 rpm - 9,000 rpm
... Torsionally flexible claw couplings MULTI MONT SELLA * compensate for axial-, radial- und angular misalignments * absorb shocks and vibrations * are fail-safe and withstand high overloads * are well suited as plug-in ...
REICH-Kupplungen
Torque: 18 Nm - 130,000 Nm
Rotational speed: 2,100 rpm - 11,500 rpm
FlexDur | FD FlexDur FD-C - All steel coupling * Torsionally rigid and backlash-free torque transmission * Compensation of axial, radial and angular shaft displacement * Small reaction forces at shaft misalignment * Neither ...
REICH-Kupplungen
Torque: 0.25 Nm - 250 Nm
Rotational speed: 0 rpm - 10,000 rpm
The Single Flex SA2 version of the Servoflex SFC series impresses with its extremely high torsional stiffness combined with possible compensation in axial and angular direction. Due to the light and high-strength aluminum alloy it has ...
Miki Pulley Europe AG
Torque: 2 Nm - 400 Nm
Rotational speed: 3,500 rpm - 40,000 rpm
The ASK sliced coupling is the ideal way to compensate all types of misalignment. Their unique slot structure is the best solution for non-aligned shafts or highly resonant installation situations. One-piece production ...
Miki Pulley Europe AG
Torque: 0.5 Nm - 150 Nm
Rotational speed: 4,000 rpm - 18,000 rpm
A product of the first hour. The jaw coupling Sprflex AL has a flexible element made of NBR rubber, which has special damping properties and gives the coupling its characteristics. Due to the simple structure ...
Miki Pulley Europe AG
Torque: 15 Nm - 450 Nm
Rotational speed: 0 rpm - 10,000 rpm
... hubs. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment when connecting two shaft ends. The high torsional spring rate of the couplings ...
Torque: 30 Nm - 6,000 Nm
Rotational speed: 0 rpm - 10,000 rpm
... bellows and 2 clamping hubs. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment when connecting two shaft ends. The high torsional spring rate of the ...
Torque: 22 Nm - 600 Nm
Rotational speed: 4,900 rpm - 12,700 rpm

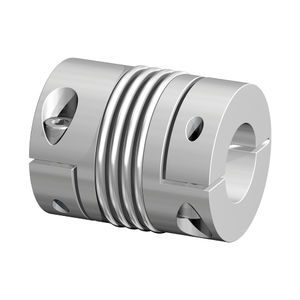

The metal bellows couplings from the 'AKN' series boast trusted quality and increased torsional stiffness. The reduced shafts in the element guarantee for high stiffness while at the same time compensating ...
Torque: 20 Nm - 1,164 Nm
Rotational speed: 4,100 rpm - 12,000 rpm
... ® Flexible Shaft Couplings provide a tough, robust, and durable design that is ideal for motion control applications requiring increased misalignment capacity compared to Zero Max’s Single Flex design . The Double Disc ...
ZERO-MAX
Torque: 20.5 Nm - 48,600 Nm
Rotational speed: 1,200 rpm - 12,500 rpm
The FLEXOMAX G is a torsionally flexible coupling fitted with compressible flexible elements. The coupling’s flexibility compensates axial, radial and angle displacements between coupled shafts, absorbing ...
VULKAN Industry and Energy
Torque: 3,600 Nm - 644,400 Nm
Rotational speed: 650 rpm - 7,000 rpm

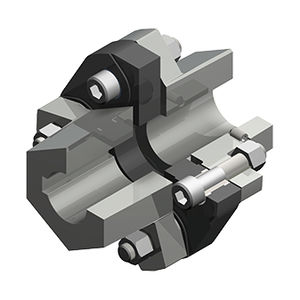

... Radial removability of the coupling without having to move the connected machinery Possibility of integrating braking discs or pulleys within the coupling Design Available in different designs (G/GSN/GBN) ...
VULKAN Industry and Energy
Torque: 3,000 Nm - 20,025 Nm
Rotational speed: 1,900 rpm - 16,000 rpm

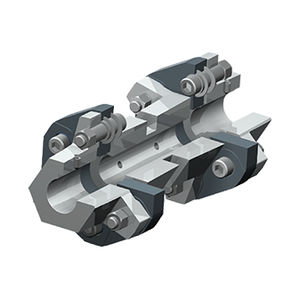

... FLEXOMAX GSN is a torsionally flexible coupling fitted with compressible flexible elements. It compensates axial, angled and radial displacements between shafts and absorbs shocks and vibrations. This type of coupling’s ...
VULKAN Industry and Energy
Torque: 55 Nm - 5,100 Nm
Rotational speed: 2,500 rpm - 5,000 rpm
Couplings with a flexible ring to compensate for greater angular and radial misalignments than those allowed for in couplings with rubber elements. The flexible elements can be replaced without moving ...
Torque: 0.5 Nm - 6 Nm
Rotational speed: 19,000 rpm - 52,000 rpm
MFBS /MFB is a bellows type flexible coupling. The bellows allows eccentricity, angular misalignment, and end-play. Even if there is misalignment, the constant revolution is performed. Ideal for rotary encoder applications. There ...
Torque: 0.3 Nm - 6 Nm
Rotational speed: 15,000 rpm - 42,000 rpm

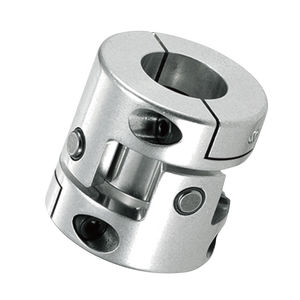

XUT is a cross joint type flexible coupling. Slippage of the bush built in the hubs and the pins of the spacer allows eccentricity and angular misalignment to be accepted. The high accuracy fitting of pin and bush allows ...
Torque: 45 Nm - 38,000 Nm
... responsible for the exceptional compactness of the torsionally stiff coupling, but lets the coupling not give up when it comes to high misalignments by compensating for them effortlessly, ...
SCHMIDT-KUPPLUNG
Torque: 12.5, 17, 60, 160 Nm
... flexible claw couplings are suitable for compensating axial, radial and angular misalignments and for damping vibrations and torque shocks. The shock-absorbing properties are due to the elastic elements ...
Torque: 5 Nm - 1,120 Nm
Rotational speed: 400 rpm - 19,000 rpm

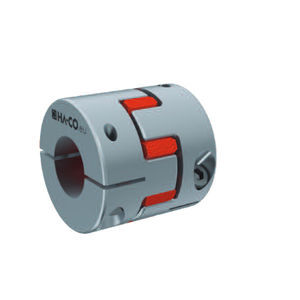

Short version with clamping hub and optimum damping characteristics. SKK compensating coupling! Claw coupling Elastomer couplings belong to the group of claw couplings ...
HA-CO GmbH
Torque: 3 Nm
Rotational speed: 0 rpm - 10,000 rpm
Miniature metal bellows coupling with clamping hub Eigenschaften Economically priced Backlash free and torsionally stiff Wear free and robust Temperature range -40 °C to +200 °C (-40 °F to +392 °F) Design Two ...
Torque: 66 Nm - 148,500 Nm
Rotational speed: 1,000 rpm - 3,000 rpm
... Inkoflex-coupling is a machine element for torque transmission between shafts, whose alignment can not be guaranteed due to the methods of manufacture and assembly and for shafts whose alignment varies during operation. ...
Torque: 100 Nm - 3,240 Nm
STANDARD FLEXIBLE COUPLINGS FOR MANY AREAS OF APPLICATION “Standard” flexible couplings are elastic coupling elements developed for installation in the most diverse drive train applications. ...
SGF GmbH & Co. KG
Torque: 0 ft.lb - 200,000 ft.lb

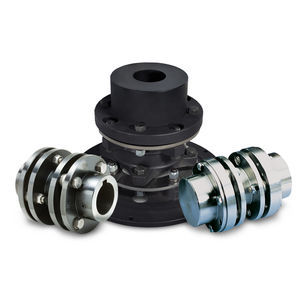

Form-Flex® couplings transmit torque while compensating for angular, parallel and axial misalignment between two connected shafts. Flexible disc couplings minimize the misalignment forces ...
Torque: 10 Nm - 4,200 Nm
Rotational speed: 2,700 rpm - 7,100 rpm
connects drive shaft and driven shaft like a universal cardan joint special solutions on request compensating axial, radial and angular misalignments backlash-free wear-free ...
Maschinenfabrik Mönninghoff GmbH & Co. KG
Torque: 2,400 Nm
Rotational speed: 10,200 rpm
DENTEX® FLEXIBLE GEAR COUPLINGS REDUCE THE EFFECT OF SHOCK LOADING These steel gear hub/nylon drive sleeve gear couplings are designed to compensate for radial, angular and axial shaft displacements ...
