Flexible coupling BKL 3
torsionally rigidbellowsminiature

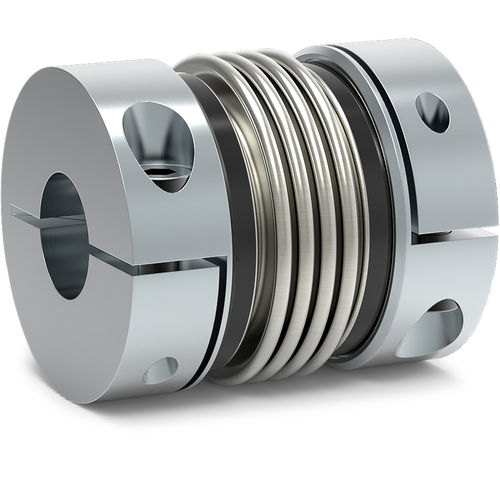

Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 2
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 3
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 4
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 5
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 6
Flexible coupling - BKL 3 - R + W Coupling Technology - torsionally rigid / bellows / miniature - image - 7
Add to favorites
Compare this product

Characteristics

Type
flexible, torsionally rigid, bellows
Construction
miniature
Performance
backlash-free
Other characteristics
compensating
Installation system
sleeve and shear pin
Torque

3 Nm
(2.212686 ft.lb)

Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

Miniature metal bellows coupling with clamping hub Eigenschaften Economically priced Backlash free and torsionally stiff Wear free and robust Temperature range -40 °C to +200 °C (-40 °F to +392 °F) Design Two clamping hubs, each with a clamping screw Material Bellows: high grade stainless steel Hubs: aluminium General information Service life R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded Fit clearance Overall shaft / hub clearance of 0.01 – 0.05 mm Special solutions Various materials, tolerances, dimensions and performance ratings available for custom applications on request ATEX (Optional) For use in hazardous zones 1/21 and 2/22, the metal bellows has been authorized under directive 94/9/EG and is available with certification
