Flexible coupling MKH seriesbellowsshaftmetal bellows
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- flexible, bellows
- Product applications
- shaft
- Construction
- metal bellows
- Other characteristics
- torque, custom-made
- Installation system
- flange
- Torque
Max.: 10 Nm
(7.37562 ft.lb)Min.: 0.5 Nm
(0.36878 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.85 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description

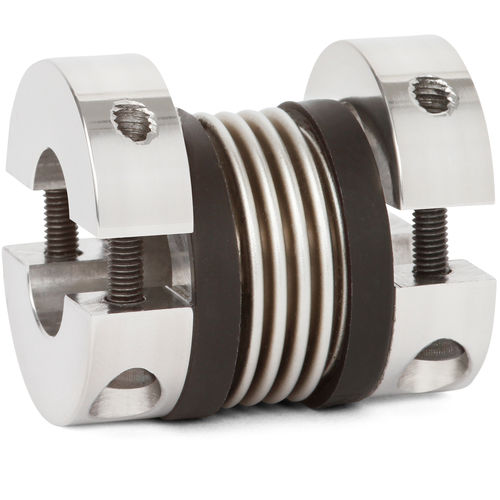

Miniature metal bellows coupling with split clamping hub
Features
Mounts laterally
Easy mounting and dismounting
Light weight and low moment of inertia
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two fully split clamping hubs, with two screws in each
Clamping halves radially removable in one direction
Material
Bellows: high grade stainless steel
Hubs: aluminium
Properties
General information
Service life
R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded
Fit clearance
Overall shaft / hub clearance of 0.01 – 0.05 mm
Special solutions
Various materials, tolerances, dimensions and performance ratings available for custom applications on request
ATEX (Optional)
For use in hazardous zones 1/21 and 2/22, the metal bellows has been
