Torque limiter with sprocket wheel SKP series
safetyspring

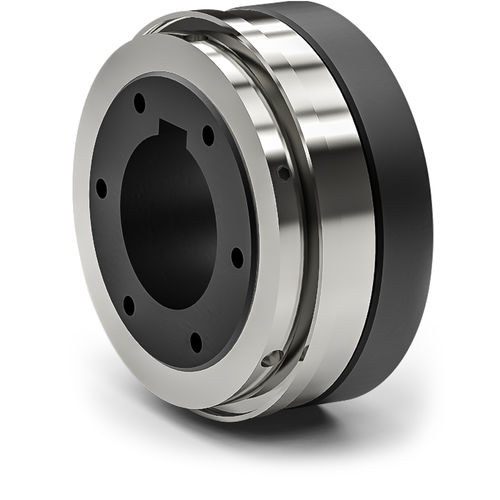

Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 2
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 3
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 4
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 5
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 6
Torque limiter with sprocket wheel - SKP series - R + W Coupling Technology - safety / spring - image - 7
Add to favorites
Compare this product

Characteristics

Operation
with sprocket wheel
Other characteristics
safety, spring
Torque

Min.: 0.1 Nm
(0.073756 ft.lb)

Max.: 2,800 Nm
(2,065.174018 ft.lb)

Diameter

Min.: 4 mm
(0.16 in)

Max.: 100 mm
(3.94 in)

Description

Torque limiter with simple keyway connection Material: Safety system: hardened steel Temperature range: -30°C to +120° C (-22° F to +248°F) Design: With DIN 6885 or ANSI B17.1 keyway. Safety system: spring loaded ball-detent principal Available function systems: W = Single position / automatic re-engagement (standard) D = Multi-position / automatic re-engagement G = Load holding / load blocking F = Full disengagement / manual re-engagement General information Properties Service life R+W bellows couplings are fatigue resistant and wear free for an infinite service life, as long as the technical limits are not exceeded Fit clearance Overall shaft / hub clearance of 0.01 – 0.05 mm Special solutions Various materials, tolerances, dimensions and performance ratings available for custom applications on request ATEX (Optional) For use in hazardous zones 1/21 and 2/22, the torque limiter has been authorized under directive 94/9/EG and is available with certification
