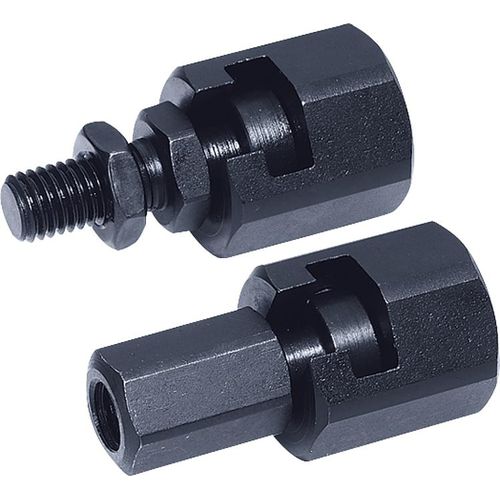

Quick-fit couplings with radial offset compensation
Coupling part and claw in steel.
Nut (DIN 439) in steel, grade 8.8.
Coupling part and claw tempered and phosphated.
Nut steel, black oxidised.
Quick-fit couplings with radial offset compensation for multiple applications, e.g. as a link between a piston rod and a linear-movement unit. Assembly and disassembly of this simple, solid and two-part coupling is carried out by means of a T-slot; a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic cylinders via the connecting thread.
The quick-fit coupling does not transmit any torque.
