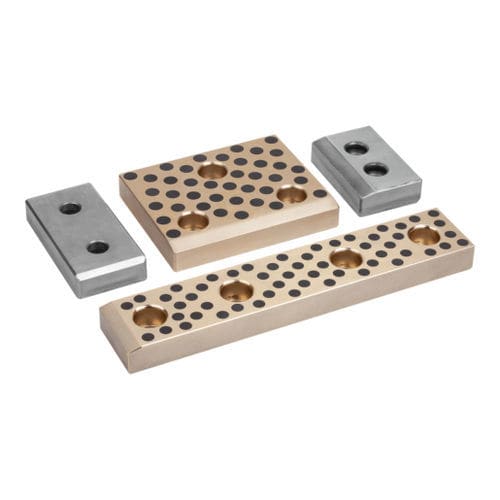

Bronze wear plate 23765

steel

Glide plate bronze or steel, maintenance-free MATERIAL Bronze with graphite inserts. Steel. VERSION Self-lubricating bronze. Hardened steel. NOTE The sliding plates slide in a vertical direction. The bronze slide elements are maintenance-free and wear-resistant. The graphite inserts provide lifetime lubrication. The steel slide plates are hardened and have no solid lubricant. TECHNICAL DATA Material properties: Base alloys: CuZn25Al5Mn4Fe3-C. Density: 8.2 kg/dm³. Flexural fatigue strength: +/- 150 MPa. Modulus of elasticity: 120,000 N/mm². Coefficient of friction: 0.05 - 0.12. Max. speed: 0.5 m/s. Thermal conductivity: 50 W/(mK). Coefficient of thermal expansion: 18x10-6 K-1. Electrically conductive: 7-8 m/(Ω·m-1). Solid lubricant content: 20-25%. Static surface pressure: 50 N/mm². Dynamic surface pressure: 35 N/mm². TEMPERATURE RANGE Up to 230 °C.
