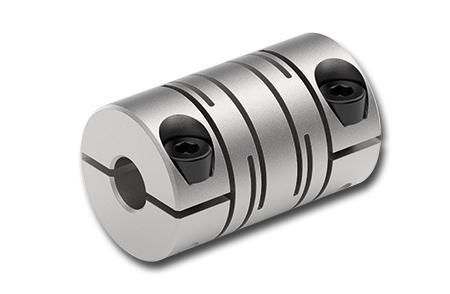

Torsionally rigid coupling RBC … FKC-ALU

aluminumwith clampfor stepper motors

Cross-slotted beam coupling with clamp made of high-strength aluminium 7075-T6 (material no. 3.4365). Designed for backlash-free, torsionally rigid connections; suitable for medium torques and drives with fast start/stop cycles.

Features

• Backlash-free, torsionally rigid cross-slotted coupling
• Designed for drives requiring fast start/stop cycles
• Suitable for medium torque ranges
• Material: Aluminium 7075-T6 (material no. 3.4365)

Typical application

• Servomotors
• Positioning systems
• Step motors

Available variants (selection from webshop table; price not shown)

• RBC 0015 FKC-ALU-003.000-003.000 — Article number: 4417-115108-003.00 — Weight: 9.0 g — d1: 3 mm — d2: 3 mm — Delivery time: 10 days
• RBC 0015 FKC-ALU-005.000-003.000 — Article number: 4417-115108-M20532 — Weight: 9.0 g — d1: 5 mm — d2: 3 mm — Delivery time: 10 days
• RBC 0015 FKC-ALU-005.000-005.000 — Article number: 4417-115108-005.00 — Weight: 9.0 g — d1: 5 mm — d2: 5 mm — Delivery time: 10 days
• RBC 0020 FKC-ALU-004.000-004.000 — Article number: 4417-120108-004.00 — Weight: 20.0 g — d1: 4 mm — d2: 4 mm — Delivery time: 10 days
• RBC 0020 FKC-ALU-006.000-004.000 — Article number: 4417-120108-M20542 — Weight: 20.0 g — d1: 6 mm — d2: 4 mm — Delivery time: 10 days
• RBC 0020 FKC-ALU-006.000-006.000 — Article number: 4417-120108-006.00 — Weight: 20.0 g — d1: 6 mm — d2: 6 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-006.000-006.000 — Article number: 4417-125108-006.00 — Weight: 33.0 g — d1: 6 mm — d2: 6 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-008.000-006.000 — Article number: 4417-125108-M20559 — Weight: 33.0 g — d1: 8 mm — d2: 6 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-008.000-008.000 — Article number: 4417-125108-008.00 — Weight: 33.0 g — d1: 8 mm — d2: 8 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-010.000-006.000 — Article number: 4417-125108-M20579 — Weight: 33.0 g — d1: 10 mm — d2: 6 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-010.000-008.000 — Article number: 4417-125108-M20583 — Weight: 33.0 g — d1: 10 mm — d2: 8 mm — Delivery time: 10 days
• RBC 0025 FKC-ALU-010.000-010.000 — Article number: 4417-125108-010.00 — Weight: 33.0 g — d1: 10 mm — d2: 10 mm — Delivery time: 10 days
• RBC 0030 FKC-ALU-010.000-010.000 — Article number: 4417-130108-010.00 — Weight: 60.0 g — d1: 10 mm — d2: 10 mm — Delivery time: 10 days
• RBC 0030 FKC-ALU-012.000-010.000 — Article number: 4417-130108-M20598 — Weight: 60.0 g — d1: 12 mm — d2: 10 mm — Delivery time: 10 days
• RBC 0030 FKC-ALU-012.000-012.000 — Article number: 4417-130108-012.00 — Weight: 60.0 g — d1: 12 mm — d2: 12 mm — Delivery time: 10 days

Technical characteristics / specifications

• Series: RBC (FKC-ALU variant)
• Construction: Cross-slotted beam coupling with clamp hub
• Material: Aluminium 7075-T6 (material no. 3.4365)
• Behavior: Backlash-free, torsionally rigid; suited to fast start/stop cycles
• Intended for: Medium torque applications (servomotors, positioning and stepper systems)
• Typical lead time (standard): 10 business days (ex works; standard for orders up to 5 pcs)
