Flexible coupling RBC … EWC-STE

with clampcompactstainless steel

Single-beam coupling with clamp, stainless steel 17-4PH (material no. 1.4542)

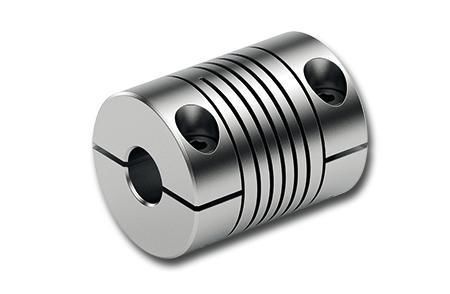

The RBC … EWC-STE is a compact single-beam coupling designed for universal industrial use where backlash-free, angle-synchronous torque transmission and effective compensation of shaft misalignments are required. Manufactured from stainless steel 17-4PH, it is intended for medium torque applications and environments requiring corrosion resistance.

Key features

• Compact single-beam design for space-saving installations
• Backlash-free, angle-synchronous transmission of rotary movements
• Suited for medium torque ranges
• Material: stainless steel 17-4PH (material no. 1.4542)
• Optimised compensation of axial, radial and angular shaft misalignments

Typical applications

• Encoders
• Tachogenerators
• Spindle drives and precision motion systems

Available variants (selection from webshop table) — product designation / article number / weight / d1 [mm] / d2 [mm] / delivery time

• RBC 0015 EWC-STE-003.000-003.000 / 4417-115100-003.00 / 25,0 / d1=3 / d2=3 / 10 Days
• RBC 0015 EWC-STE-004.000-004.000 / 4417-115100-004.00 / 25,0 / d1=4 / d2=4 / 10 Days
• RBC 0015 EWC-STE-005.000-005.000 / 4417-115100-005.00 / 25,0 / d1=5 / d2=5 / 10 Days
• RBC 0020 EWC-STE-005.000-005.000 / 4417-120101-005.00 / 58,0 / d1=5 / d2=5 / 10 Days
• RBC 0020 EWC-STE-006.000-005.000 / 4417-120101-M20543 / 58,0 / d1=6 / d2=5 / 10 Days
• RBC 0025 EWC-STE-006.000-006.000 / 4417-125101-006.00 / 97,0 / d1=6 / d2=6 / 10 Days
• RBC 0025 EWC-STE-008.000-006.000 / 4417-125101-M20559 / 97,0 / d1=8 / d2=6 / 10 Days
• RBC 0025 EWC-STE-010.000-006.000 / 4417-125101-M20579 / 97,0 / d1=10 / d2=6 / 10 Days
• RBC 0030 EWC-STE-010.000-010.000 / 4417-130101-010.00 / 167,0 / d1=10 / d2=10 / 10 Days
• RBC 0030 EWC-STE-011.000-010.000 / 4417-130101-M20591 / 167,0 / d1=11 / d2=10 / 10 Days
• RBC 0030 EWC-STE-012.000-010.000 / 4417-130101-M20598 / 167,0 / d1=12 / d2=10 / 10 Days (some sizes: on request)

Available downloads / supplementary resources

• Datasheet (product datasheet: RBC … EWC-STE)
• 3D CAD model (CAD models page)
• Installation and operating instructions (RBC … EWS/EWC/DWC/FKC)
• Catalogue: Beam Couplings

Technical specifications

• Material: Stainless steel 17-4PH (material no. 1.4542)
• Type: Single-beam coupling with clamp (EWC-STE series)
• Function: Backlash-free, angle-synchronous torque transmission
• Compensation capability: Optimum compensation of axial, radial and angular shaft misalignments
• Typical torque range: medium torques (see variant selection for specific data)
• Typical delivery time (ex works): 10 business days for many standard sizes; some sizes on request
• Documentation available: Datasheet, installation & operating instructions, CAD models, catalogue
