Torsionally flexible coupling RBC … DWC-ALU

for machinesfor spindlesfor machine tools

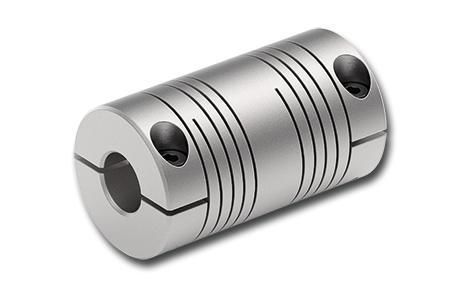

Double-beam coupling RBC DWC-ALU is a compact, lightweight aluminium double-beam coupling with clamp designed for backlash-free, angle-synchronous transmission and optimum compensation of shaft misalignments.

Features

• Compact coupling for universal use
• Backlash-free, angle-synchronous transmission of rotary motion
• High radial misalignment capability
• Designed for smaller torques
• Material: Aluminum 7075-T6 (material no. 3.4365)
• Optimum compensation of shaft misalignments

Typical applications

• General mechanical engineering
• Apparatus engineering
• Spindle drives

Available product variants (from webshop table)

• RBC 0100 DWC-ALU-006.000-006.000 — Article number: 4417-126104-006.00 — Weight: 54.0 g — d1: 6 mm — d2: 6 mm — Delivery time: 10 Days
• RBC 0100 DWC-ALU-008.000-006.000 — Article number: 4417-126104-M20559 — Weight: 54.0 g — d1: 8 mm — d2: 6 mm — Delivery time: 10 Days
• RBC 0100 DWC-ALU-008.000-008.000 — Article number: 4417-126104-008.00 — Weight: 54.0 g — d1: 8 mm — d2: 8 mm — Delivery time: 10 Days
• RBC 0100 DWC-ALU-010.000-006.000 — Article number: 4417-126104-M20579 — Weight: 54.0 g — d1: 10 mm — d2: 6 mm — Delivery time: 10 Days
• RBC 0100 DWC-ALU-010.000-008.000 — Article number: 4417-126104-M20583 — Weight: 54.0 g — d1: 10 mm — d2: 8 mm — Delivery time: 10 Days
• RBC 0100 DWC-ALU-010.000-010.000 — Article number: 4417-126104-010.00 — Weight: 54.0 g — d1: 10 mm — d2: 10 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-008.000-008.000 — Article number: 4417-132104-008.00 — Weight: 113.0 g — d1: 8 mm — d2: 8 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-010.000-008.000 — Article number: 4417-132104-M20583 — Weight: 113.0 g — d1: 10 mm — d2: 8 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-010.000-010.000 — Article number: 4417-132104-010.00 — Weight: 113.0 g — d1: 10 mm — d2: 10 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-012.000-008.000 — Article number: 4417-132104-M20594 — Weight: 113.0 g — d1: 12 mm — d2: 8 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-012.000-010.000 — Article number: 4417-132104-M20598 — Weight: 113.0 g — d1: 12 mm — d2: 10 mm — Delivery time: 10 Days
• RBC 0125 DWC-ALU-012.000-012.000 — Article number: 4417-132104-012.00 — Weight: 113.0 g — d1: 12 mm — d2: 12 mm — Delivery time: 10 Days
• RBC 0150 DWC-ALU-010.000-010.000 — Article number: 4417-138104-010.00 — Weight: 180.0 g — d1: 10 mm — d2: 10 mm — Delivery time: 10 Days
• RBC 0150 DWC-ALU-012.000-010.000 — Article number: 4417-138104-M20598 — Weight: 180.0 g — d1: 12 mm — d2: 10 mm — Delivery time: 10 Days
• RBC 0150 DWC-ALU-012.000-012.000 — Article number: 4417-138104-012.00 — Weight: 180.0 g — d1: 12 mm — d2: 12 mm — Delivery time: 10 Days

Technical specifications

• Product type: Double-beam coupling with clamp
• Material: Aluminum 7075-T6 (material no. 3.4365)
• Backlash: designed for backlash-free angle-synchronous transmission
• Misalignment compensation: high radial misalignment and optimum compensation of shaft misalignments
• Intended torque range: for smaller torques (sizes for small to moderate torque applications)
• Typical weights by series: RBC 0100 ≈ 54.0 g; RBC 0125 ≈ 113.0 g; RBC 0150 ≈ 180.0 g
• Standard delivery time (ex works): 10 business days (standard for orders up to max. 5 pcs.)
• Documentation available: product datasheet and installation/operating instructions (see product documents)
