Elastomer coupling EK2 series
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Torque
Min.: 6 Nm
(4.425373 ft.lb)Max.: 2,150 Nm
(1,585.758621 ft.lb)- Rotational speed
Min.: 4,000 rpm
(25,132.7412 rad.min-1)Max.: 12,500 rpm
(78,539.8163 rad.min-1)
Description

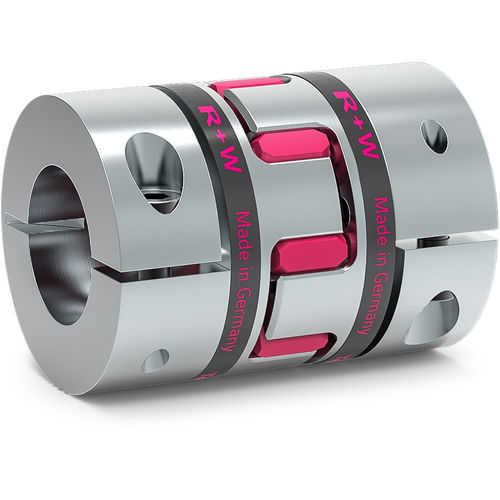

Elastomer coupling with clamping hub
Features
Easy mounting
High concentricity
Vibration damping
Temperature range
Depending on elastomer insert
Design
Two concentrically machined hubs with curved jaws and one clamping screw on each side
Material
Hubs:
up to 450 series – high-strength aluminum
from series 800 – steel
Elastomer insert: wear-resistant thermally stable TPU
