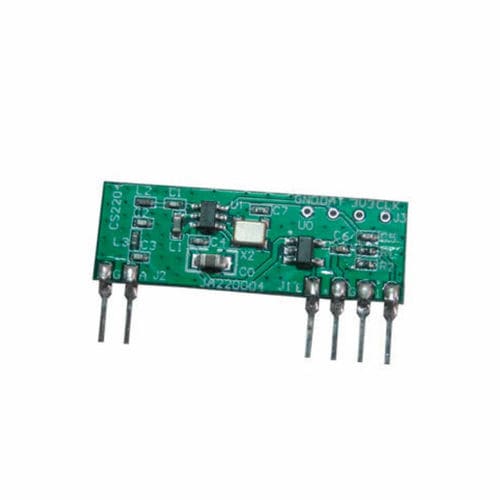

FSK radio transmitter RC-TFSK4 series

RC-TFSK4-XXXN is an FSK Radio transmitter module with crystal oscillator, dual line package operating at 3.3Volt. Output Power 10dBm. Power down mode is also available. On request, it is possible to realize a transmitter with a specific frequency in the following ranges: - from 433.00MHz to 435.00MHz with 0.01 MHz steps. It's possible to make samples immediately. Standard versions available: - RC-TFSK4-433N ⇒ Frequency 433.92MHz Custom versions already available: - RC-TFSK4-433.42N ⇒ Frequency 433.42MHz - RC-TFSK4-434.15N ⇒ Frequency 434.15MHz - RC-TFSK4-434.50N ⇒ Frequency 434.50MHz Pin to pin compatible with the old module RC-TFSK4-434. Technical Specifications: - Technology: FSK Radio Transmitter Module - Oscillator: Crystal - Operating Voltage: 3.3V (Power down mode available) - Output Power: 10dBm - Frequency Range: 433.00MHz to 435.00MHz (customizable in 0.01 MHz steps) - Standard Frequency: 433.92MHz - Custom Frequencies: 433.42MHz, 434.15MHz, 434.50MHz - Package: Dual line - Pin Compatibility: Compatible with RC-TFSK4-434
