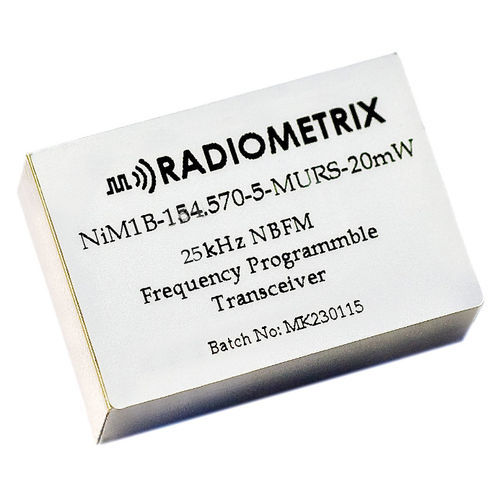

Radio transceiver NiM1B

VHFtelemetry1-channel

The narrow band NiM1B transceiver offers a low power, reliable data link in a Radiometrix transceiver standard pin out and footprint. The NiM1B is a frequency programmable, narrowband design, suitable for licensed and unlicensed VHF allocations, FCC part 90 and part 95 (MURS) operations. Conforms to EN 300 220-3 and EN 301 489-3 (10mW version only) Compliant with FCC part 95 (MURS) Standard frequency 154.570MHz or 154.600MHz (re-programmable) Other frequencies from 120MHz to 175MHz Data rates up to 5kbps for standard module Usable range over 1km Fully screened Low power requirements 25kHz Channel spacing Feature-rich interface (true analogue and/or digital baseband) Multi-Use Radio Service (MURS) Industrial telemetry and telecommand High-end security systems Vehicle data up/download ROV/machinery controls Fully integrated sigma-delta PLL synthesizer based design High stability TCXO reference Data bit rate: 5kbps max. Transmit power: +13dBm (20mW) Image rejection: >70dB Receiver sensitivity: -120dBm (for 12dB SINAD) RSSI output with >50dBm range Supply: 3.3V - 15V @ 30mA transmit, 18mA receive Dimensions: 33 x 23 x 11mm (fully screened)
