Motor conveyor system K8conveyor chain
Add to favorites
Compare this product
Characteristics
- Product applications
- motor, conveyor chain
Description
Overview

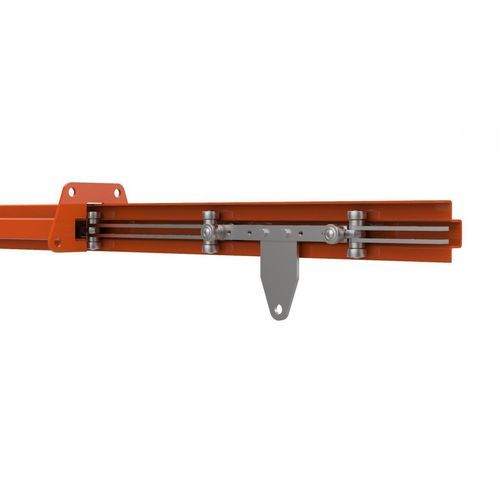

The K8 transport system is a motor-driven chain conveyor running within a rail system. The caterpillar drive engages the conveyor chain and moves it forward. An optional automatic lubrication unit can be fitted to ensure regular lubrication of the chain joints during operation.
Operation
Hanger plates fitted with product holders are installed at fixed intervals according to customer requirements. These hangers transport products along the conveyor and can be unloaded after processes such as painting or curing, then reloaded as required.
Characteristics / technical specifications
The K8 transport system is a motor-driven chain conveyor running within a rail system. The caterpillar drive engages the conveyor chain and moves it forward. An optional automatic lubrication unit can be fitted to ensure regular lubrication of the chain joints during operation.
Operation
Hanger plates fitted with product holders are installed at fixed intervals according to customer requirements. These hangers transport products along the conveyor and can be unloaded after processes such as painting or curing, then reloaded as required.
Characteristics / technical specifications
- Track load: 50 kg/m
- Max. load per hanger plate: 40 kg* (depending on hanger plate configuration)
- Drive type: caterpillar drive (motorized)
- Optional equipment: automatic lubrication unit
Catalogs
K8/K8-2/K10/K10-2
36 Pages
Other RAIL TECHNIEK products
Overhead Conveyors - Chain Conveyors
