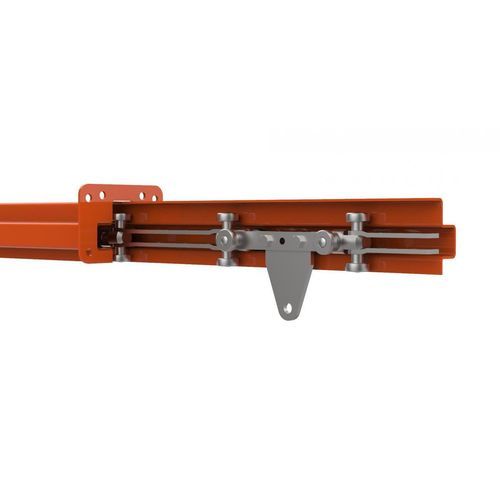

Motor conveyor system K10

conveyor chainoverhead

Product description
The K10 transport system is a motor-driven overhead chain conveyor that circulates a conveyor chain within a rail system. A caterpillar drive unit engages the conveyor chain to propel it forward. An optional automatic lubrication unit can be installed to provide regular lubrication of the chain joints during operation.

Operation
At fixed intervals, hanger plates fitted with product holders ('hangers') are installed according to customer requirements to carry products along the conveyor. Hangers can be unloaded after the product completes process stages such as painting or curing and can then be reloaded as required.

Characteristics / technical specifications

• Track load: 100 kg/m
• Max. load per hanger plate: 80 kg (depending on hanger plate configuration)
• System type: Motor-driven overhead chain conveyor
• Drive: Caterpillar drive unit engaging the conveyor chain
• Optional equipment: Automatic lubrication unit for regular chain joint lubrication
• Hanger plates: Installed at fixed intervals and equipped with product holder hangers per customer requirements
• Typical applications: Transport through painting, curing and similar process routes
