Conveyor chain conveyor system D8

for tracksoverhead

Overview

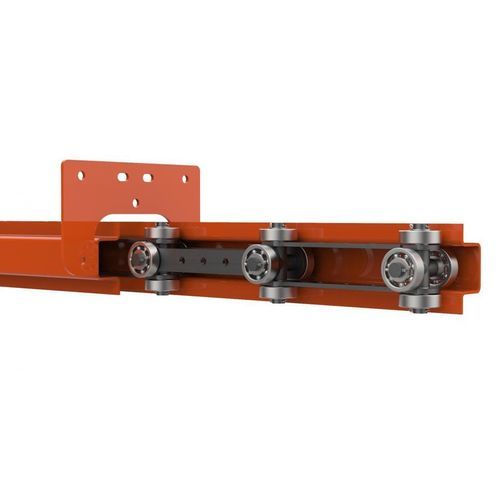

The D8 chain conveyor is an overhead motor-driven monorail conveyor in which a chain runs inside a rail system. A helical screw or caterpillar drive unit engages the conveyor chain to move it. An optional automatic lubrication unit can be fitted to ensure regular lubrication of the chain joints during operation.

Functionality

• Drive options: helical screw drive or caterpillar drive unit.
• Optional automatic lubrication unit for chain joint lubrication during operation.
• Flexible drive selection to suit layout and throughput requirements.

Product holders
Product holders (hangers) are mounted at fixed intervals per customer specifications. They can be simple hanger plates or flight bars depending on the installation and the product to be transported.

Unload and reload
Hangers can be unloaded at process stations such as painting booths or curing ovens and reloaded with new products as required.

Characteristics / Technical specifications

• Model: D8
• Type: Overhead monorail motor-driven chain conveyor
• Track load: 200 kg/m
• Maximum load per hanger plate: 150 kg (dependent on hanger plate configuration)
• Drive options: helical screw drive or caterpillar drive unit
• Optional features: automatic lubrication unit
• Product handling: fixed-interval hangers (hanger plates or flight bars); unload/load at process stations
