Conveyor system for industrial applications 240.000

for loadsfor windows and doorsfor joinery

Overview

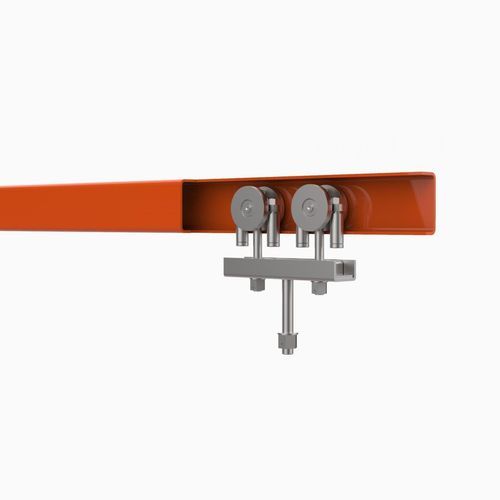

The RTN 240.000 monorail conveyor (formerly ROB) is a modular manual internal transport system designed to support piece or carrier handling at workstations and along production lines. The system provides straight profiles, bends and switches and can integrate drop sections, chain transfers and pneumatic pushers for partial automation where required.

Key features

• Modular design for scalable layout and simple extensions
• Manual handling as standard with options to partially automate sections using chain conveyors and pneumatic pushers
• Available components: drop sections for ergonomic loading, chain transfer units, automatic loading/unloading zones, bridge cranes and rotation units

Specifications
Track size: 74x74 mm (W x H)
Track load capacity: 500 kg/m
Maximum load limit: up to 1000 kg*
*Depends on trolley type and product carrier configuration

Applications

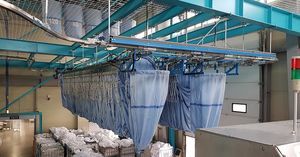

Suitable for internal transportation of varied loads. Commonly used in woodworking lines (windows, doors) and other production environments requiring flexible manual handling with the possibility of local automation.

Technical characteristics

• Model designation: RTN 240.000 monorail conveyor (formerly ROB)
• Operation: manual; partial automation possible
• Modular components: profiles, bends, switches, drop sections, chain transfers, automatic zones, bridge cranes, rotation units
• Typical industries: furniture, joinery, general assembly lines
