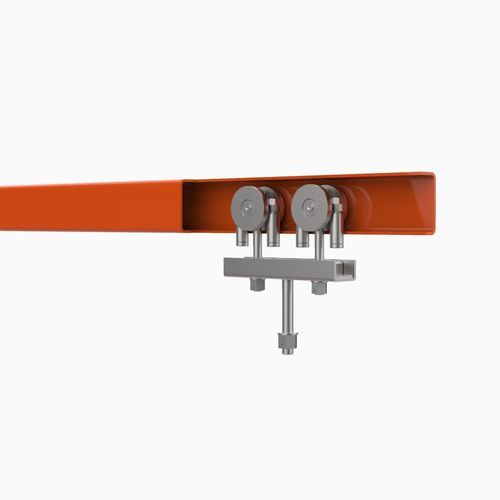

Manual conveyor system RTN 250.000

heavy hauloverhead

Overview
The RTN 250.000 monorail conveyor (formally ROB) is the simplest form of internal transport offered and is designed to support production workflows. The system comprises profiles, bends and switches suitable for a variety of load types and can be configured with components such as drop sections, chain transfer systems, automatic loading/unloading zones, bridge cranes and rotation units.

Operation and automation
Load movement is manual by default. Sections of the manual system can be (partially) automated using chain conveyors and pneumatic pusher systems as required by production processes.

Design and flexibility

• Modular design enabling straightforward assembly and extension according to customer requirements
• Components available for ergonomic loading and for integration with other material handling equipment
• Wide range of profiles and track elements (bends, switches) to accommodate various carrier configurations

Technical specifications

• Track size: 80x100 mm (WxH)
• Track load: 1000 kg/m
• Load limit: 3000 kg* (depending on trolley type used and product carrier configuration)
