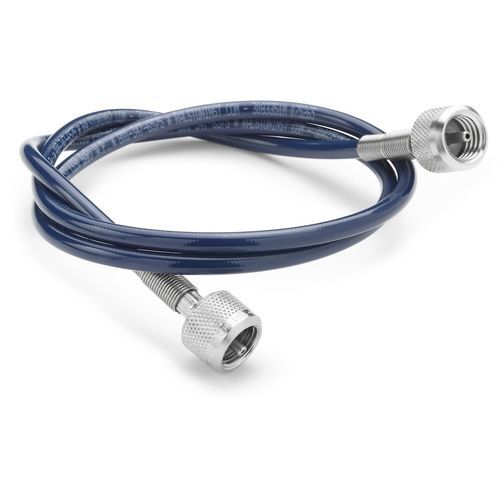

Quick-connect hose XT seriesfuel oilfor waterpolyamide
Add to favorites
Compare this product
Characteristics
- Use
- for water, fuel oil
- Material
- stainless steel, polyamide
- Applications
- high-pressure, pump
- Other characteristics
- flexible, quick-connect, anti-corrosion
- Inner diameter
3 mm
(0.118 in)- Outer diameter
7 mm
(0.276 in)- Pressure
10,000 psi
- Temperature
Min.: -40 °F
(-40 °C)Max.: 140 °F
(60 °C)- Delivered length
Min.: 61 cm
(24.02 in)Max.: 3,100 cm
(101.71 in)
Description
10,000 psi (689 bar) working pressure Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test
• Low volume reduces the pumping effort or compressed gas usage in pressure calibration
• No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
• Bubble tight connections to 10000 psi (689 bar) with no moving parts reduces maintenance to almost zero
• Hose is hard to break and very flexible
• Adapt from hose to virtually any device under test with only one connection
• A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
• Hose is not recommended for Helium or Argon applications
• Hose is pin-pricked for use in Natural Gas applications
• Quick-test XT hoses are NOT compatible with QTHA adapters. Please use XTHA adapters
• Made in USA
