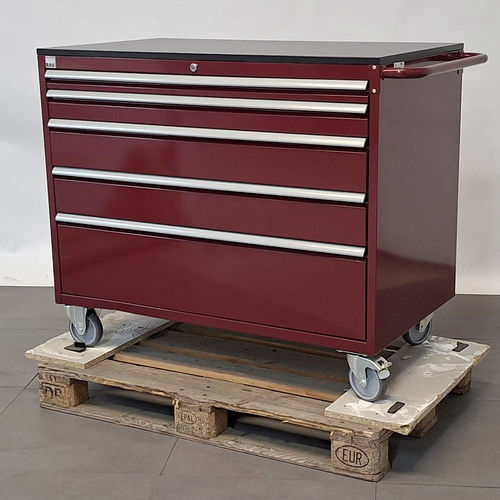

5-drawer workshop cart 05-XXL5.2A-M.305-Sch
Add to favorites
Compare this product
Characteristics
- Number of drawers
- 5-drawer
Description
Product description
Condition (B-grade)
Equipment
Note on surface / colour
Technical characteristics / specifications
- Top cabinet including worktop with 19 mm melamine resin coating. Top and underside with black melamine resin direct coating (splash-proof, stain-resistant).
- Melamine resin properties per EN14322/EN14323: abrasion resistance Class 3A; scratch resistance > 1.5; stain resistance ≥ 3; crack resistance ≥ 3; cigarette glow resistance Grade 3; water vapor resistance Grade 4. Core: particleboard per EN309/EN312 (emission class E1). All-around light-grey antistatic ABS edging. Surface classified normally flammable (B2) per DIN4102. Migration safety certificate (suitable for food contact).
Condition (B-grade)
- Top slightly soiled, damaged and scratched.
- Wheels slightly damaged and worn.
- Minor paint damage, scratches and dents.
- Cabinet slightly warped and drawers protrude slightly on the right.
- Top slightly warped.
- Drawer handles slightly damaged.
Equipment
- 5 x XXL drawer sizes: 1x H60, 1x H90, 2x H150, 1x H270 mm.
- Drawer interior: W1055 x D560 mm, load capacity per drawer 50 kg. Usable drawer height equals front height minus 15 mm.
- Roll-mounted partial-extension rails (90% extension) with self-closing, anti-return and single-drawer locking.
- Continuous ErgoScript® handle: steel sheet base with aluminium-coloured overlay and integrated clear cover (incl. labelling strip).
- Central lock (pin cylinder lock with 2 keys).
- 2 rigid and 2 swivel castors with brake, mounted on welded wheel plates; wheel diameter 125 mm, overall height 150 mm; tread: thermoplastic rubber (grey, non-marking, 85° Shore); wheel core polypropylene. Rigid castors on left (front and rear) and swivel castors with brake on right (front and rear).
- Push handle mounted on right side (protrudes 135 mm).
- Document pocket on right side, W325 x D55 x H200 mm. Front with square hole pattern (10 x 10 mm, center distance 38 mm) for pegboard accessories; accessories supplied loose.
Note on surface / colour
- Colour: RAL3005 Wine red.
Technical characteristics / specifications
- Extension type: partial extension 90%.
- Width: 1145 mm.
- Depth: 650 mm.
- Height: 970 mm.
- Top thickness: 19 mm.
- Top: melamine top (melamine resin coating).
- Mobile uniformly distributed load: 450 kg.
- Number of drawers: 5.
- Drawer interior: W1055 x D560 mm; load capacity per drawer: 50 kg.
- Castors: Ø 125 mm, overall height 150 mm, tread thermoplastic rubber, wheel core polypropylene; 2 rigid, 2 swivel with brake.
- Document pocket: W325 x D55 x H200 mm.
- Push handle overhang: 135 mm (right).
- Front heights of drawers: H60 / H90 / H150 / H270 (depending on drawer).
- Lock: pin cylinder lock (2 keys).
