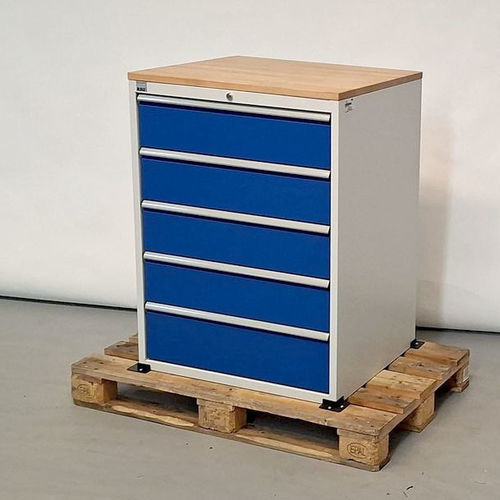

Small parts storage chest of drawers 03-XL7.5A-B.11-Sch

Small parts storage chest of drawers - 03-XL7.5A-B.11-Sch - RAU
Small parts storage chest of drawers - 03-XL7.5A-B.11-Sch - RAU
Small parts storage chest of drawers - 03-XL7.5A-B.11-Sch - RAU - image - 2
Small parts storage chest of drawers - 03-XL7.5A-B.11-Sch - RAU - image - 3
Add to favorites
Compare this product

Characteristics

Options
for small parts storage

Description

Description
  • Top cabinet including a solid beech worktop, thickness 25 mm.
  • Beech lamellas finger-jointed. Front edge radius, other edges chamfered. Surface protected with eco-friendly lacquer oil finish.
  • Colour: RAL7035 light grey / RAL5010 gentian blue.
  • No visible defects.


Equipment / Features
  • 5 x XL drawer sizes: 4x front height 180 mm, 1x front height 210 mm.
  • XL drawer internal dimensions: W680 x D560 mm, load capacity 75 kg.
  • Usable drawer height = front height minus 15 mm.
  • Roller-mounted partial extension slides (90% extension) with soft-start and anti-reverse plus individual-drawer locking.
  • Continuous ErgoScript® handle strip: steel base with aluminium-colour overlay and integrated transparent cover (including labeling strip).
  • Central locking (pin cylinder lock with 2 keys).


Technical data
  • Extension type: partial extension 90%
  • Width: 770 mm
  • Uniformly distributed static load: 750 kg
  • Height: 1035 mm
  • Number of drawers: 5
  • Depth: 650 mm
  • Top: solid beech worktop
  • Top thickness: 25 mm


Model / Specifications
  • Model/Series: Schubladenschrank 7000
  • Article number: 03-XL7.5A-B.11-Sch
  • Dimensions (W x D x H): 770 mm x 650 mm x 1035 mm
  • Number of drawers: 5 (XL)
  • Drawer internal (W x D): 680 mm x 560 mm
  • Load capacity per drawer: 75 kg
  • Extension: partial extension 90% with soft-start and anti-reverse
  • Worktop: solid beech, 25 mm, lacquer oil finish
  • Colours: RAL7035 (light grey) / RAL5010 (gentian blue)
  • Locking: central lock with pin cylinder (2 keys)
  • Static distributed load: 750 kg
