8-drawer workshop cart 05-LL5.20.20E-B-LP650.19-Sch

8-drawer workshop cart - 05-LL5.20.20E-B-LP650.19-Sch - RAU - image - 2

8-drawer workshop cart - 05-LL5.20.20E-B-LP650.19-Sch - RAU - image - 3

Add to favorites

Compare this product

Characteristics

Number of drawers: 8-drawer

Description

Description

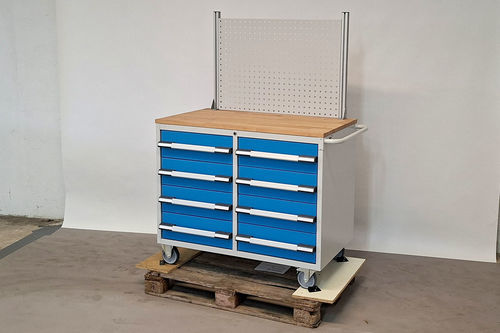

Mobile assembly trolley Series 7000 with beech solid worktop (25 mm) and integrated storage; suitable for assembly and maintenance tasks in industrial workshops.
Worktop: beech lamella with finger-jointing. Front edge rounded, other edges chamfered. Surface protected with eco-friendly lacquered linseed oil. Produced from PEFC-certified regional raw material.
Finish colours: RAL7035 light grey / RAL5012 light blue.
Condition: demonstration unit - no visible defects.

Equipment

Left: 4 × drawers size L, height each 180 mm.
Right: 4 × drawers size L, height each 180 mm.
Drawer internal dimensions L490 × D560 mm, load capacity 100 kg. Useful drawer height equals front height minus 15 mm. Partial-extension ball-bearing slides (90% travel) with self-closing and anti-rebound function.
Continuous aluminium handle rail (oval tube) with left and right spacers and integrated transparent cover for colour/label strip. Handle operable from top and bottom.
Central locking (pin cylinder lock with 2 keys).
2 rigid and 2 swivel castors with brake, mounted on welded plates. Wheel diameter 125 mm, overall height 150 mm. Tread: thermoplastic rubber (grey, non-marking, 85° Shore). Wheel core: polypropylene. Rigid castors on the left (front and rear); swivel castors with brake on the right (front and rear).
Push handle mounted on right side (protrusion 135 mm).
Document pocket W325 × D55 × H200 mm. Front with square-system perforation (10×10 mm, pitch 38 mm) for pegboard accessories.
1 pair of system supports for mounting on the worktop: aluminium profile 40×40 mm fixed to worktop by adapter. Profiles have grooves on all four sides for accessory mounting.
Useful height 700 mm.
Designed to be mounted on: worktop.
Accepts: add-on elements (system accessories).
Maximum load per surface when mobile: 100 kg.
1 × pegboard W915 × D40 × H650 mm.
With square-system perforation (10×10 mm, pitch 38 mm).
Mounting on: system supports (between). Height adjustable. When pegboard is mounted, accessories such as shelf edges, metal shelves and holding rails can be fitted in front or behind.
Accepts: pegboard accessories, mounting adapter for flat-screen display.
Maximum load of pegboard: 30 kg.
