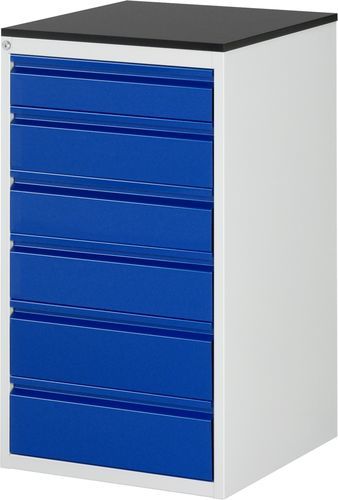

Small parts storage chest of drawers 03-L7.6I-M.11

Description

• Industrial drawer cabinet with integrated melamine-faced worktop. Worktop with melamine resin coating; surface resistant to splash water and dirt, compliant with relevant DIN/EN standards for surface properties.
• Melamine surface characteristics: abrasion resistance class 3A, scratch resistance N > 1.5, stain resistance level 3 (e.g. acetone, alcohol, organic solvents), cigarette burn behavior class 3, steam behavior class 4. Board core: particleboard to EN309/EN312 (emission class E1). Edging: light grey antistatic ABS. Classified normally flammable (B2) per DIN4102. Migration test certificate available (suitable for use in food-related areas).

Features

• 6 drawers: 1 x H120 mm, 3 x H150 mm, 2 x H180 mm. Drawer inner dimensions (size L): B490 x T560 mm.
• Load capacity per drawer: 100 kg. Usable drawer height equals front height minus 15 mm.
• Roller-mounted partial extension rails (90% travel) with self-closing and anti-reverse lock.
• Continuous integrated handle strip across drawers.
• Central locking: pin cylinder lock supplied with 2 keys.
• Options: selectable tops (beech top, melamine top, metal top). Frame/finish available in various RAL colours.

Technical data
Width: 580 mm
Height: 1030 mm
Depth: 650 mm
Top type: Melamine top
Top thickness: 19 mm
Stationary surface load: 750 kg
Number of drawers: 6

Additional information

• Model: BASIC-7
• EAN: 4040376986153
• Article no.: 03-L7.6I-M.11
• Outer dimensions (W x H x D): 580 mm x 1030 mm x 650 mm
• Worktop specification: melamine resin coating (worktop indicated as 20 mm in product description), board core particleboard EN309/EN312 (E1), light grey antistatic ABS edging
• Drawer extension: 90% partial extension with self-close and anti-reverse
• Locking: central locking with pin cylinder (2 keys)
• Surface standards: DIN68765, EN14322/EN14323, DIN4102 B2
• Stationary surface load: 750 kg
• Delivery: assembled; lead time: 5 working days
• Manufacturer notes: powder-coated parts, 5-year warranty, Made in Germany
