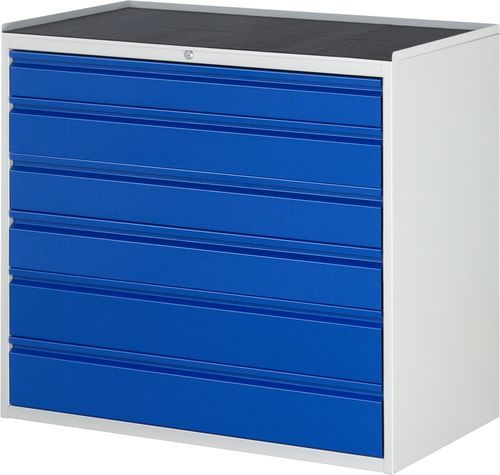

Small parts storage chest of drawers 03-XXL7.6I-MT.11

Product description
Cabinet with metal top including a 3-sided upstand and anti-slip mat, top thickness 25 mm.

Features

• 6 x XXL drawer sizes: 1x H120, 3x H150, 2x H180 mm.
• XXL drawer interior (W1055 x D560 mm, load capacity 50 kg). Usable drawer height equals front height minus 15 mm.
• Roller-bearing partial-extension slides (90% travel) with automatic return, anti-backlash protection and individual drawer extraction lock.
• Continuous, fully integrated handle strip (handle chamfer).
• Central locking (pin cylinder lock with 2 keys).

Variants / options

• Top: beech top, melamine top, metal top (metal top selected).
• Frame / equipment colour options: various RAL shades (e.g. RAL7035 light grey, RAL5010 gentian blue, RAL3000 flame red, etc.).
• Express production (optional, surcharge according to offer).

Technical specifications

• Extension type: partial extension 90%
• Width: 1145 mm
• Height: 1035 mm
• Depth: 650 mm
• Number of drawers: 6
• Top type: Metal top
• Top thickness: 25 mm
• Static surface load: 750 kg
• Drawer internal dimensions (XXL): W1055 x D560 mm, load capacity per drawer 50 kg
• With central locking (pin cylinder lock, 2 keys)
