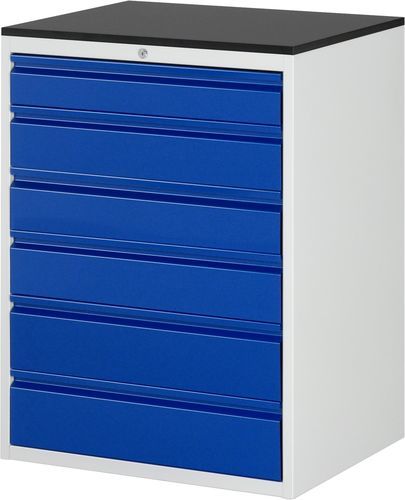

Small parts storage chest of drawers 03-XL7.6I-M.11
Add to favorites
Compare this product
Characteristics
- Options
- for small parts storage
Description
Description
Features
Configuration notes
Characteristics / Specifications (technical data)
- Top cabinet including worktop with melamine resin coating, thickness 20 mm. Top and underside with a black melamine resin direct coating. Melamine resin coating according to DIN 68765. Splash-water resistant and stain resistant. Surface properties according to EN14322/EN14323: abrasion resistance Class 3A. Scratch resistance N>1.5. Stain resistance level 3 (e.g. acetone, alcohol, organic solvents, petrol). Crack tendency level ≥ 3. Behavior to cigarette glowing Grade 3. Behavior to water vapor Grade 4. Certificate of harmlessness regarding migration behavior, allowing use also in food-related areas. Cover normally flammable (B2) according to DIN4102. Board core made of particleboard according to EN309/EN312 (emission class E1). Light grey antistatic ABS edging all around.
Features
- 6 x drawer size XL: 1 x H120, 3 x H150, 2 x H180 mm.
- Drawer size XL (internal W680 x D560 mm), load capacity 75 kg. Usable height of the drawer equals the front height minus 15 mm.
- Roller-mounted partial extension rails (90% extension) with self-insertion and anti-return as well as individual extraction lock.
- Continuous, fully integrated handle strip (handle edge).
- Central locking: pin cylinder lock with 2 keys.
Configuration notes
- Top execution selectable (e.g. Melamine top, beech top, metal top). In shown product: Melamine top.
- Color variants for frame and fittings available (various RAL shades).
Characteristics / Specifications (technical data)
- Width: 770 mm
- Depth: 650 mm
- Height: 1030 mm
- Surface load (stationary): 750 kg
- Number of drawers: 6
- Top plate type: Melamine top
- Top plate thickness: 19 mm
