IEC/EN Category: D1/C1/C2/C3
Mode of Protection: Longitudinal, Transverse
Coarse Protection: 3 Terminal GDT (Data Line)
MOVs (PS Line)
Voltages: 24 V DC (Data Line); 24 V AC (Power Line)
Frequency Range: 30 MHz
Surge Discharge Ratings: In: 10 kA, Imax: 20 kA, Iimp: 2.5 kA
Series Load Current: 1 A (Data Line), 3 A (PS Line)
Enclosure: DIN 43880 2/3 TE, DIN Rail Mount
Terminals: Stranded to 4 mm2
Housing: Modular Design
Compliance: IEC/EN 61643-21

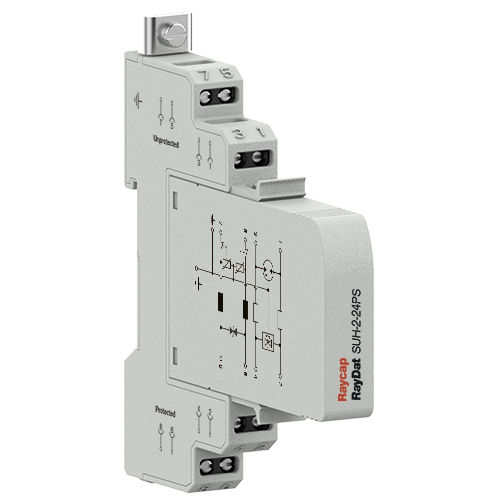

The RayDat SUH-2 PS Series has been developed for the protection of systems with one supply and one signal line (CAN bus, DeviceNet,...). This efficient overvoltage protective device is intended to protect the line from overvoltage surges and electrostatic discharges created by switching transients in buildings. The signal line circuit is designed to minimize inter-capacitance, and shunt capacitance, thereby maximizing the operating frequency to 30 MHz. If the module is unplugged out of the base, the connection lines remain enabled.
