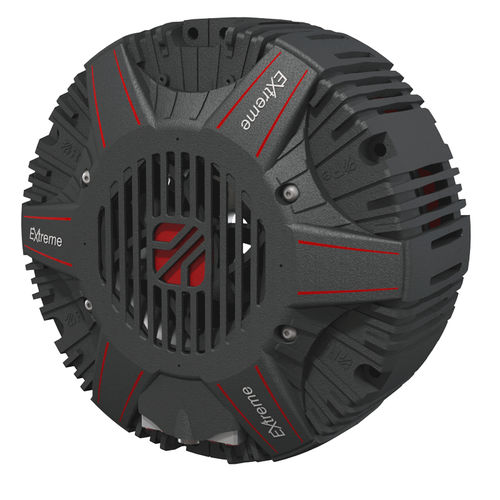

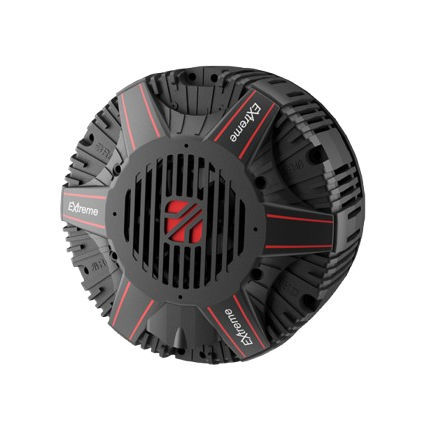

Disc brake XT series

pneumaticadjustablehigh-torque

Extreme is the single-disc industrial pneumatic brake for roll stand, unwinders and rewinders, designed to improve productivity, reduce waste and ensure constant web tension control. With compact dimensions, pads lasting more than seven years and an eco-friendly design, it offers maximum reliability in all operating conditions. The fastest and most uniform response time on the market ensures stable, linear and constant torque, even when the temperature changes. Every component, from the self-ventilated disc to the pad compound to the geometry of the housing, has been carefully studied to optimise overall performance. Available in two models, Extreme adapts to different needs: XT10 is ideal for high braking torques, such as in corrugated board machines, while XT7 is designed for narrow-web, where high torque stability and no residual torque are needed. Installation is quick and easy, both on new unwinders and those already in operation. In addition, the XT.7 can be equipped with reduced torque calipers by 15% or 60% to ensure stable and optimal tension control even in applications involving lightweight materials or narrow web widths. Thanks to this feature, when controlled by e tension regulator with Selematic system, the XT.7 can dynamically adjust braking force in real time based on the application’s requirements. Extreme is the ideal choice for those seeking a reliable, high-performance industrial pneumatic brake for web tension control, increasing the efficiency and stability of production processes. Up to 1500Nm of torque and 6kW of heat dissipation. Constant web tension control to reduce waste and increase productivity.
