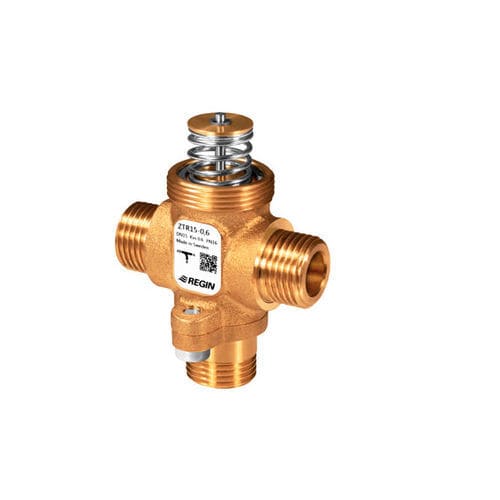

Control valve ZTR20-4,0for hot waterfor cooling waterfor heating
Add to favorites
Compare this product
Characteristics
- Function
- for control
- Media
- for hot water, for cooling water
- Applications
- for heating, for ventilation systems, for coils
- Number of channels
- 3-way
- Other characteristics
- ISO
- DN
Max.: 25 mm
(0.984 in)Min.: 15 mm
(0.591 in)- Pressure
16 Pa
(0 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: 1 °C
(34 °F)
Description
Valves used for control of hot and cold water in climate, heating and ventilation systems. They can also control glycol-mixed water in for example liquid connected recovery systems. Intended to be used together with the RVAZ4 actuators.
Specifications
Connection - G 3/4"
Actuator connection - Standard for RVAZ4 actuators
Rangeability - 50:1
Stroke - 5.5 mm
Nominal diameter - DN20
Kvs - 4 m³/h
Max. diff. pressure - 150 kPa
Flow characteristics - Equal percentage
Leakage - 0.0 % of Kvs (No leakage)
Media - Hot water, Cold water, Glycol-mixed water (max. 30 % glycol)
Closing direction - When stem is pulled outward
Max. diff. pressure - 150 kPa
Body - Brass CW614N
Seat - Brass CW614N
Plug - Brass CW614N
Stem - Stainless steel 1.4305
Seat packing - EPDM
O-rings - EPDM
Stuffing box - Chromed brass CW614N
