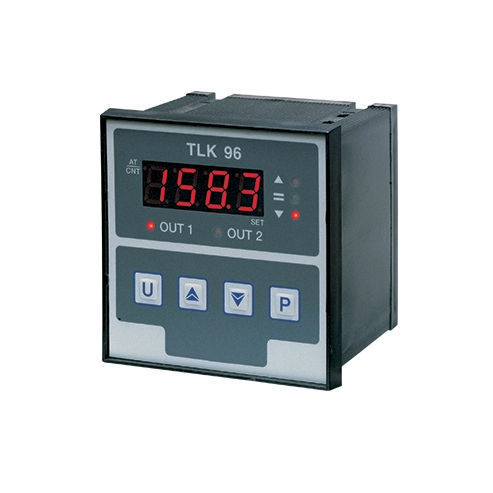

Digital temperature regulator TLK96PIDprogrammableUL
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID, programmable
- Protection level
- UL, IP54, self-extinguishing
- Use
- process
- Other characteristics
- RS-485
- Maximum temperature
Min.: -200 °C
(-328 °F)Max.: 1,760 °C
(3,200 °F)
Description
Power supply: 24VAC/VDC – 100…240VAC – 50/60Hz
Power consumption: approximately 5VA
Inputs: 1 input for TC J, K, S, infrared J and K, Pt100, PTC KTY 81-121 – NTC 103AT temperature probes – 20…50mV, 0…60mV, 12…60mV, 0/4…20mA, 0/1…5V, 0/2…10V
Outputs: up to 3 relay or voltage outputs for SSR control
Auxiliary power output: 12VDC / 20mA max.
Dimensions: 96 x 96mm DIN, 73mm deep
Casing: self-extinguishing plastic, UL 94 V0
Mounting: Recessed (90 x 90mm)
Regulation: ON/OFF, ON/OFF with neutral zone, single-action PID
Frontal protection rating: IP54 with optional seal
