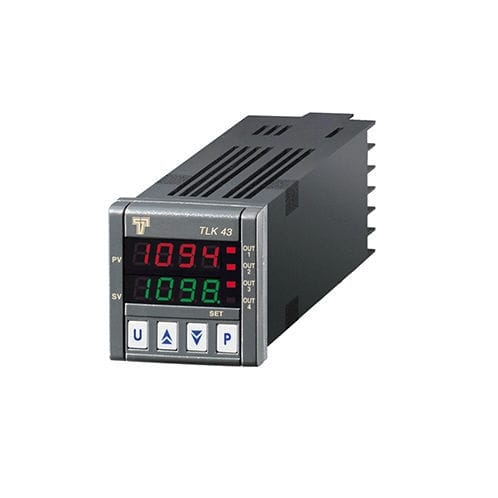

Digital temperature regulator TLK43PIDprogrammableUL
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID, programmable
- Protection level
- UL, IP54, self-extinguishing
- Use
- process
- Other characteristics
- RS-485, configurable
- Maximum temperature
Min.: -250 °C
(-418 °F)Max.: 2,320 °C
(4,208 °F)
Description
Power supply: 24VAC/VDC – 100…240VAC – 50/60Hz
Power consumption: approximately 10VA
Inputs: 1 input for IRS J and K infrared temperature probes, Pt1000, Pt100, PTC KTY 81-121 – NTC 103AT-2 0…50mV, 0…60mV, 12…60mV, 0/4…20mA, 0/1…5V, 0/2…10V – 1 digital input for potential-free contacts
Outputs: Up to 4 relay or voltage outputs for SSR control / Up to 2 analog outputs: 0/4…20mA, 0/2…10V
Auxiliary power output: 12VDC / 20mA max.
Dimensions: 48 x 48mm DIN, 98mm deep
Casing: self-extinguishing plastic, UL 94 V0
Mounting: Recessed (45 x 45mm)
Control: ON/OFF, single-action PID, double-action PID, PID for motorized actuations with temporary positioning
Serial interface: Isolated RS485
Communication protocol: MODBUS RTU (JBUS)
Transmission speed: selectable 1200…38400 baud
Frontal protection rating: IP54 with optional seal
