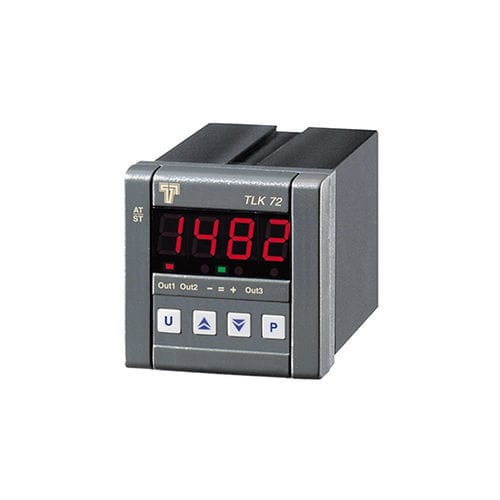

Digital temperature regulator TLK72
PIDprogrammableUL

Digital temperature regulator - TLK72 - Regulation France - PID / programmable / UL
Digital temperature regulator - TLK72 - Regulation France - PID / programmable / UL
Add to favorites
Compare this product

Characteristics

Display
digital
Type
PID, programmable
Protection level
UL, IP54, self-extinguishing
Use
process
Other characteristics
RS-485
Maximum temperature

Min.: -200 °C
(-328 °F)

Max.: 1,760 °C
(3,200 °F)

Description

Power supply: 24VAC/VDC – 100…240VAC – 50/60Hz Power consumption: approximately 5VA Inputs: 1 input for TC J, K, S temperature probes, IRS J and K infrared probes, Pt100 probes, PTC KTY 81-121 probes – NTC 103AT-2 probes (0…50mV, 0…60mV, 12…60mV, 0/4…20mA, 0/1…5V, 0/2…10V) – 1 digital input for voltage-free contacts Outputs: up to 3 relay or voltage outputs for SSR control Auxiliary power output: 12VDC / 20mA max. Dimensions: 72 x 72mm DIN, 97mm deep Casing: self-extinguishing plastic, UL 94 V0 Mounting: Recessed (66.5 x 66.5mm) Regulation: ON/OFF, ON/OFF with neutral zone, single-action PID, double-action PID Serial interface: Isolated RS485 Communication protocol: MODBUS RTU (JBUS) Transmission speed: selectable 1200…38400 baud Frontal protection rating: IP54 with optional seal
