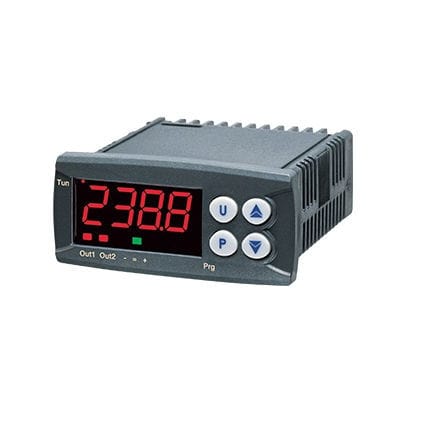

Digital temperature regulator K38PIDprogrammableUL
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID, programmable
- Protection level
- UL, IP65, self-extinguishing
- Use
- process
- Other characteristics
- configurable, compact
- Maximum temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)
Description
Power supply: 12-24VAC/VDC – 100…240VAC – 50/60Hz
Power consumption: 5VA max.
1 input for temperature probes: J, K, R, S, T, Pt100, 0/12…60mV, PTC, NTC, 0/4…20mA, 0…1V, 0/1…5V, 0/2…10V
Outputs: up to 2 relay outputs
Dimensions: 75 x 33mm, 75.5mm deep
Casing: self-extinguishing plastic, UL 94 V0
Mounting: Recessed (71 x 29mm)
Regulation: ON/OFF – SSR
Facade protection rating: IP65 with optional seal
