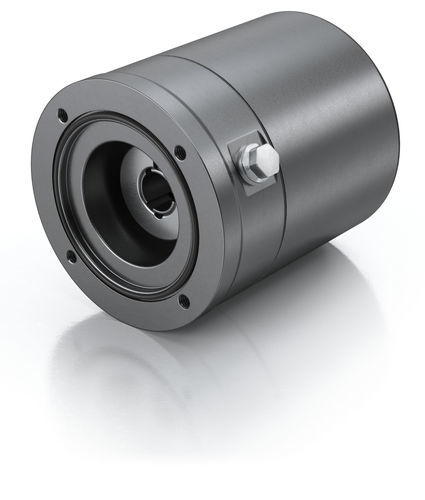

Planetary gearbox PAH

coaxialsolid-shaftcompact

Product description
Specifically designed for applications in the food, pharmaceutical and beverage industries where hygiene is essential, the PAH planetary gearbox is manufactured in anodized aluminum and developed according to EHEDG guidelines. It combines hygienic design with high resistance to chemical cleaning and disinfecting agents.

Characteristics

• Compact design
• Lubricant suitable for the food industry (NFS H1 registered)
• Lifetime lubrication
• Housing in anodized aluminum (hygienic design)
• Any mounting position
• Integer reduction ratios
• Optimized sealing materials
• Dead-space-free shaft seal
• Secure motor-specific mounting system
• Direct motor mounting without axial load using clamp connections

Options

• Compatible with all common servo motors and Rehfuss SBA, SBE and SBH motor series
• Flange options for synchronous servo motors

Areas of application

• Food industry
• Beverage industry
• Pharmaceutical technology
• Chemical industry

Performance data
Circumferential backlash: < 7 – 12 arcmin
Efficiency at full load: 90 – 92 %
Lifetime: > 30,000 h
Lubrication: H1 registered lifetime lubrication
Protection class: IP69K (optional IP66)
Mounting position: universal
Permissible operating temperature: -25°C to +90°C

Notes
Illustrations, dimensions and representations are non-binding. Illustrations show options. Technical changes reserved.

Technical specifications

• Model/series: PAH planetary gearbox
• Housing material: anodized aluminum (hygienic design)
• EHEDG-compliant design
• Corrosion resistant and resistant to chemical cleaning/disinfecting agents
• Lubricant: H1 registered (suitable for the food industry), lifetime lubrication
• Backlash: < 7 – 12 arcmin
• Efficiency (full load): 90 – 92 %
• Service life: > 30,000 hours
• Protection class: IP69K (optional IP66)
• Mounting: motor-specific mounting system, direct motor mounting without axial load (clamp connections)
• Shaft seal: dead-space-free shaft seal
• Reduction ratios: integer reduction ratios
• Mounting positions: any / universal
• Operating temperature range: -25°C to +90°C
• Compatibility: all common servo motors and Rehfuss SBA, SBE, SBH motor series
