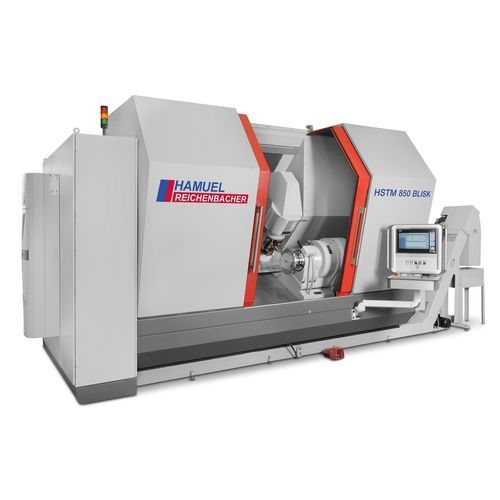

5-axis CNC machining center HSTM 500-2500

with swiveling spindleHSK A-6330 tools

Make use of your com­pe­ti­ti­ve advan­ta­ges! The 5-axis machi­ning cen­ter HSTM with hori­zon­tal com­po­nent ori­en­ta­ti­on is par­ti­cu­lar­ly sui­ta­ble for the machi­ning of tur­bi­ne and com­pres­sor blades, blisks/impellers and/or radi­al com­pres­sor fans. For opti­mum mass dis­tri­bu­ti­on, excel­lent loa­ding con­di­ti­ons and an unob­s­truc­ted view of the machi­ning pro­cess, the gui­de sys­tem is incli­ned to the front at an ang­le of 45°. Configuration examples Excel­lent up-time High sta­tic and dyna­mic rigidity Ther­mo-sta­bi­li­ty in all axes Modu­lar construction Ergo­no­mic design Motor spind­les with high speed and strong torque Utmost machi­ne dyna­mics for a short com­po­nent machi­ning time Best acces­si­bi­li­ty for main­ten­an­ce and service Hig­hest demands regar­ding accu­ra­cy and sur­face quality Auto­ma­tic chan­ging of tools and components Excel­lent sur­face qua­li­ties owing to hydro­sta­tic A- and C-axes (as an option) Precision and economics Whe­re the attainable accu­ra­ci­es and sur­face qua­li­ties are con­cer­ned, the HSTM even exceeds the hig­hest demands for modern bla­de machi­ning. Con­ti­nuous maxi­mum pro­duc­ti­vi­ty is ensu­red by its stur­di­ness and rigi­di­ty, as well as by the inte­gra­ti­on of an HSC-support. Extreme adaptability The com­pact con­s­truc­tion of the machi­ne per­mits a rapid and fle­xi­ble instal­la­ti­on at the cus­to­mer plant - wit­hout any spe­cial requi­re­ments as to the natu­re of the flo­or foun­da­ti­on.
