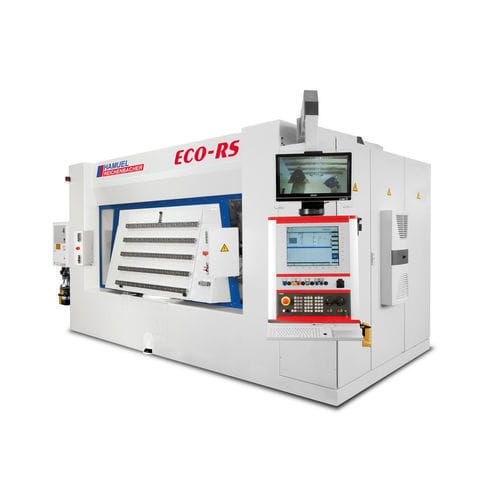

5-axis milling center ECO-RS series

verticalwith rotary tableHSK F63

The ECO-RS is one of the latest machines developed by Reichenbacher Hamuel and available in three different sizes. Installation and commissioning of a machining centre has never been so simple, as all parts are firmly attached to the machine and no parts will have to be removed for transport or relocation. What makes the new series unique is the way the components are loaded into the machine. The ECO-RS is a machine with an inclined machine bed, meaning that the table is mounted in the machine in an almost vertical position and can be rotated. Loading of the machine is effected from its front side, while the components already in its interior are being machined. As the table is inclined by 12°, the workpieces are no longer placed and clamped horizontally as before, but almost vertically. After loading, the table is rotated by 180°, the process being safeguarded by surface scanners. For the machine operator, this means no more waiting times for doors to open or similar things. Configuration examples Tool changer with 12 places that moves along in X, Y and Z Fully enclosed milling machine with rotary table and inclined machine bed Machining of components from plastics, aluminium, GFRP and of hybrid parts from plastics and metal
