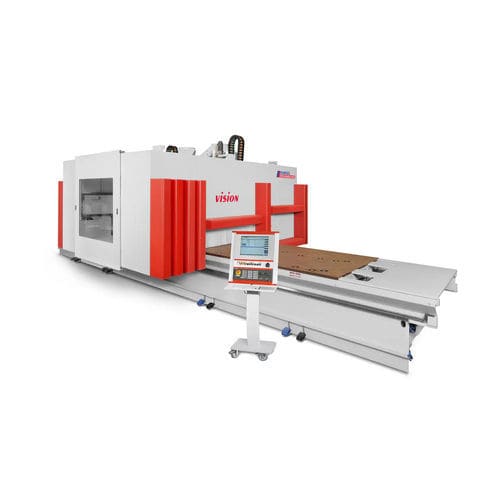

3-axis machining center VISION series

5-axis4-axisvertical

The pro­ven VISION machi­ning cen­ter alre­a­dy has an impres­si­ve track record of suc­cess in many deman­ding appli­ca­ti­ons around the world. And, like all Rei­chen­ba­cher Hamu­el machi­nes, the VISION fea­tures out­stan­ding machi­ne rigi­di­ty - the basis for pre­cis­i­on machi­ning. To meet the mar­ket chal­lenges of today, and tomor­row, we have deve­lo­ped two new VISION models; the VISION-U and VISION-L. A major fea­ture of the­se machi­nes is that they can be sup­pli­ed with a choice of table dimen­si­ons and a wide varie­ty of dif­fe­rent heads. The­se fea­tures can be com­bi­ned for sin­gle and par­al­lel machi­ning with up to two inde­pen­dent Y-slides. It is pos­si­ble to use dif­fe­rent working heads next to each other or one behind the other, thanks to the extre­me­ly rigid machi­ne con­s­truc­tion. For exam­p­le, two big 5-axis heads with com­pre­hen­si­ve addi­tio­nal equip­ment would cover many dif­fe­rent fields of application. Equip­ped with a car­da­nic working head, the basic VISION is trans­for­med into the VISION Sprint to pro­vi­de small and medi­um-sized joi­n­ery and inte­ri­or design com­pa­nies with low cost access into 3-dimensional machi­ning. The VISION Sprint unlocks the uni­que poten­ti­al that high-speed 5-axis machi­ning offers. The posi­tio­ning accu­ra­cy of the working unit means that the VISION Sprint is excel­lent­ly sui­ted to the requi­re­ments of sta­ir and door pro­duc­tion. The two swi­vel axes are incli­ned at 45° to one ano­ther and, with opti­mum tool length, their cen­ter axes inter­sect at the working point of the tool.
