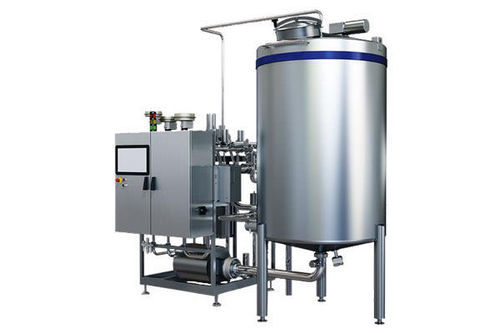

Dynamic mixer ZLVM

bottom-entrycontinuousbatch

Overview:
The ZLVM vacuum mixer is a customizable industrial mixing system designed for efficient processing of high‑viscosity products. Its turbo mixing unit, optionally equipped with a dynamic stator, delivers intensive shearing and dispersion for uniform results across viscous formulations.

Application:
This vacuum mixer is suited to homogenizing, emulsification, blending, heating, tank pasteurization, cooling and deaeration of liquids, liquid‑solid and liquid‑powder mixtures up to 80% solids. Typical sectors include dairy and prepared foods, pharmaceuticals and medical production, cosmetics and related industrial processes.

Equipment characteristics:

• Versatile unit engineered for multiple process steps and batch or continuous operation.
• Bottom‑mounted Turbo unit provides high‑efficiency mixing directly in the tank.
• Available options: direct steam injection heating; dimple‑jacket heating with steam or hot water; indirect cooling via jacket; vacuum for deaeration, powder transport, flash cooling or evaporation; powder and liquid handling systems (bin elevators, wagons for cheese, vegetables, meat); various agitator types and custom configurations.

Technical specification:

• ZLVM-100 — Turbo Motor: 11 kW; Agitator Motor: 0.9 kW; Vacuum Pump: 0.75 kW; A: 1250 mm; A1: 400 mm; B: 1600 mm; C: 582 mm; D: 314*424; E: 390; Weight: 470 kg
• ZLVM-250 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 1530 mm; A1: 500 mm; B: 1800 mm; C: 756 mm; D: 314*424; E: 390; Weight: 710 kg
• ZLVM-500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 1680 mm; A1: 600 mm; B: 2210 mm; C: 1100 mm; D: 314*424; E: 390; Weight: 865 kg
• ZLVM-1000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 2205 mm; A1: 1000 mm; B: 2485 mm; C: 1250 mm; D: 314*424; E: 445; Weight: 1565 kg
• ZLVM-1500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 2550 mm; A1: 1250 mm; B: 2560 mm; C: 1300 mm; D: 314*424; E: 445; Weight: 1725 kg
• ZLVM-2500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 2935 mm; A1: 1500 mm; B: 2710 mm; C: 1600 mm; D: 314*424; E: 445; Weight: 2115 kg
• ZLVM-5000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 3440 mm; A1: 1800 mm; B: 3210 mm; C: 2000 mm; D: 314*424; E: 445; Weight: 3060 kg
• ZLVM-7500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 3740 mm; A1: 2000 mm; B: 3460 mm; C: 2300 mm; D: 314*424; E: 580; Weight: 3470 kg
• ZLVM-10000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; A: 4130 mm; A1: 2300 mm; B: 3660 mm; C: 2500 mm; D: 314*424; E: 580; Weight: 4900 kg
• ZLVM-15000 — Turbo Motor: 200 kW; Agitator Motor: 9.2 kW; Vacuum Pump: 11 kW; A: 4565 mm; A1: 2500 mm; B: 4110 mm; C: 3000 mm; D: 314*424; E: 615; Weight: 5275 kg
