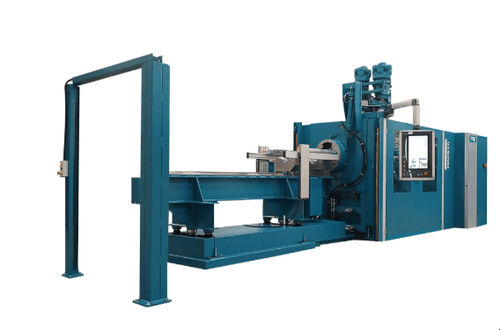

Horizontal injection press H00S20

electricfor rubberfor elastomers

Product overview
The H00S20 H-Stator machine is a horizontal press designed for moulding stators for progressive cavity (eccentric screw) pumps. It is configurable for a wide range of materials, diameters and lengths and adapts to production volumes from small batches to high-capacity moulds.

Key features

• Modular, flexible architecture with optional dual injection unit
• Theoretical unlimited injection capacity (limited by mould volume)

Modularity and flexibility

• Stator lengths: from 350 mm up to 3000 mm, 5000 mm and beyond
• Stator diameters: typically 170 mm to 350 mm and larger depending on configuration
• Compatible materials: NBR, FKM, HNBR, FFKM, EPDM, VKM and other compounds for viscous, abrasive or sensitive fluid handling

Compact design

• Production footprint under 15 m²

Applications / Industries
The H-Stator press is intended for moulding stators used in fluid handling across multiple sectors:

• Food industry (beverages, pastes, compotes)
• Construction and civil engineering (concrete and related mixtures)
• Pharmaceutical, cosmetic and chemical sectors
• Gas and oil industries

Documentation
Product flyer available for the H-Stator H00S20.

Technical characteristics / specifications

• Model: H00S20
• Machine type: Horizontal press for moulding progressive cavity pump stators
• Injection capacity: theoretically unlimited (dependent on mould volume)
• Design: modular and flexible; optional dual injection unit
• Stator lengths: from 350 mm to 3000 mm, 5000 mm and more
• Stator diameters: from 170 mm to 350 mm and above
• Materials: NBR, FKM, HNBR, FFKM, EPDM, VKM and others suitable for viscous or abrasive fluids
• Production footprint: < 15 m²
• Target industries: food, construction/civil engineering, pharmaceutical/cosmetic/chemical, gas and oil
