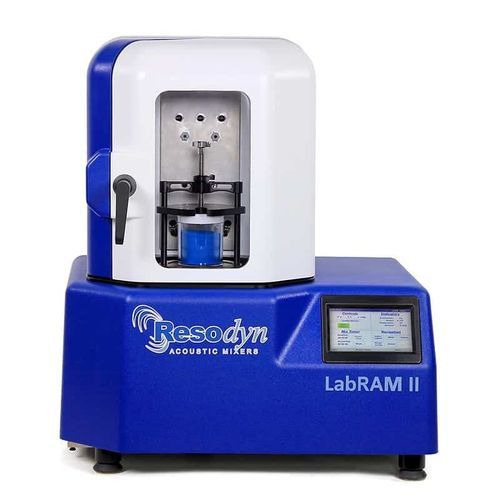

Resonant acoustic mixer LabRAM II

verticalbatchfor liquids

Designed for Dynamic Processing Requirements

The LabRAM II’s set of design and features reflects users’ critical requirements: processing speed, mixing power, and optimal parameter development to mid-scale pilot and production RAM machines. The integrated touch-screen operating system enables recipe development and data management. Optional processing accessories include vacuum systems and temperature-controlled vessels. The LabRAM II delivers better results than traditional mixers through improved efficiency, and enables new product opportunities at a payload capacity that bridges developmental scale with larger batch and continuous production. The bladeless non-contact design

Key Processing Capabilities

• Mixing and processing up to 2.2 lb (1 kg)

• Mixes any combination of solids and powders from nano-scale and up, liquids and gases, and viscous and slurry materials

• Milling, grinding, sieving and coating (spray* or dry) capabilities

• On-board control of processing accessories

• Mixing vessel temperature control from 392F (200C) heating to -40F (-40C) cooling*

• Automatic or manual vacuum as low as 10 Torr*

• Monitor mixing parameters in real-time

• Download processing data for analysis and documentation

• Develop, store, and secure up to 100 recipes for permanent recording operations and measured results

Features of the LabRAM II

• Intense, yet gentle, acoustic mixing for rapid, highly-repeatable, ultra-high-quality results

• On-board human machine interface (HMI)

• Laptop-based human machine HMI*

• Multiple level security and access control

• Height-adjustable vessel holder accepts many vessel shapes and materials: glass, plastic, metal or custom

• Temperature sensor - 316L stainless steel resistance temperature detectors (RTDs) with M12 connector, compatible with vacuum and temperature controls*

ResonantAcoustic Mixing (RAM) Product Line

Features LabRAM II performance extends across the RAM product line, enabling new product development and break-through results not possible with traditional mixing methods. All RAM products use low frequency acoustic mixing at up to 100 g of acceleration for intense but low-shear mixing resulting in:

• 10x - 100x faster processing

• Bladeless non-contact design

• Highly reliable repeatability

• Direct scaling from lab to production without increasing processing time

• Capacities for: LabRAM II 2.2 lb/1 kg

• Exceptional ingredient distribution

• Hazardous material compatible options

• Eliminate cleaning and erase cross contamination

Product Specifications

Up to 2.2 lb (1,000 gram) payload capacity full-featured, digitally controlled batch mixer for bench-scale development, mixing, and processing.

Dimensions 33 H x 29 W x 24 1/2 D

Power Specs 100-120 / 200-240 VAC, (50-60 Hz),

1 Phase Designed for Dynamic Processing Requirements:
