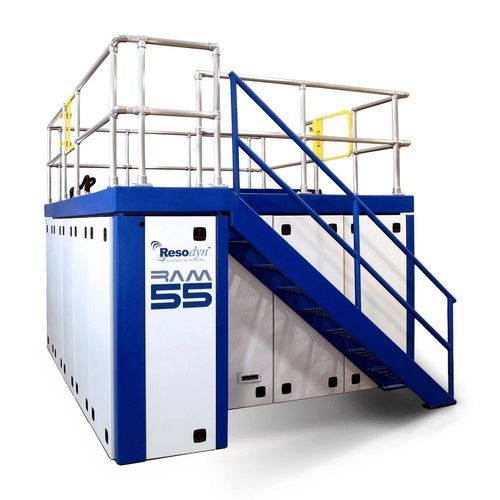

Resonant acoustic mixer RAM 55

batchfor liquidssolid/liquid

Resodyn Acoustic Mixers’ production scale mixer, the RAM 55, drastically increases the productivity and capabilities of our customers. With the batch payload capacity of up to 924 lbs (420 kg) RAM 55’s digitally controlled, multiple processing capabilities multiply RAM’s value through direct and easy scale-up from bench development to large scale batch production. RAM 55 enables the manufacture of a broad range of products:

• For Less Cost More Efficiently

• More Consistently More Uniformly

• With Less Waste Often with Unprecedented Results ResonantAcoustic Mixing (RAM) is rapidly evolving as the method of choice for developing and manufacturing products across many industries.

RAM 55 Product Line Features

The entire RAM product line enables new product development and breakthrough performance not possible with traditional mixing methods. All RAM products use low-frequency acoustic mixing coupled with up to 100g’s of acceleration for intense, but low-shear mixing that:

• Dramatically reduces mixing times, often 10x faster

• Provides exceptional distribution and homogeneity

• Up to 920 pounds (417 kilograms) of mix capacity

• Application-specific mixing vessels with several options

• Up to 100g’s of acceleration for powerful bulk mixing

• Intense, but gentle acoustic mixing for consistency and quality

• Digital control, programming, recording of all critical and metric functions

• Jacketed Mixing Vessel provides optional temperature control from 302F heating to 34F cooling

• Vacuum equipped Mixing Vessel option capable of applying up to 29 inches Hg

• Turnkey accessories and configurations for fast and installation and implementation ResonantAcoustic Mixing (RAM)

About Resodyn

Delivers consistent, repeatable mix results Global Mixing & Processing Technology Since its introduction to the marketplace in 2007, RAM mixers have become the technology of choice for many commercial and defense oriented mixing and processing applications. RAM’s unique combination of features and performance has proven successful from laboratories to production facilities across the globe, many in Fortune 500 companies. RAM 55 offers the largest ResonantAcoustic Mixing batch size and can be complemented with continuous features.

Product Details

Dimensions 10.5 H x 15 W x 20 D Power Specs 400 VAC, 50 Hz, 3 Phase 480 VAC, 60 Hz, 3 Phase
