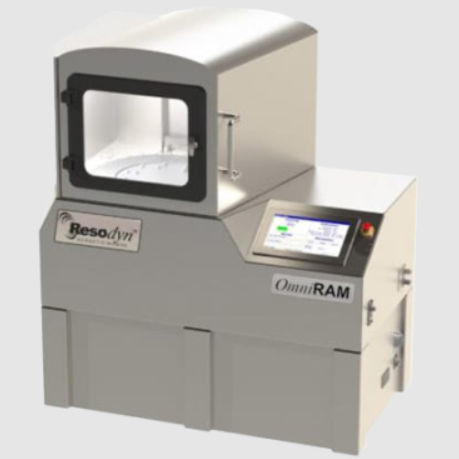

Batch mixer OmniRAM

resonant acousticverticalsolid/liquid

Designed for Dynamic Processing Requirements

The OmniRAM’s set of design and features reflects users’ critical requirements: processing speed, mixing power, and optimal parameter development to mid-scale pilot and production RAM machines. Its integrated touch-screen operating system enables recipe development and data management. Optional processing accessories include vacuum systems and temperature-controlled vessels. OmniRAM delivers better results than traditional mixers through improved efficiency, and enables new product opportunities at a payload capacity that bridges developmental scale with larger batch and continuous production.

Key Processing Capabilities

• Mixing and processing up to 11 lb (5 kg)

• Any combination of solids and powders from nano-scale and up, liquids and gasses, and viscous and slurry materials

• Coating, milling, grinding, spray coating capabilities

• On-board control of processing accessories

• Mixing vessel temperature control from 194F (90C) heating to 15.8F (-9C) cooling*

• Operate automatic or manual vacuum, reaching 10 Torr*

• Monitor mixing parameters in real-time

• Download processing data for analysis and documentation

• Develop, store, and secure up to 100 recipes for permanent recording of operations and measured results

• Compatible with Resodyn Continuous Acoustic Mixing technology*

Features of the OmniRAM

• Intense, yet gentle acoustic mixing for rapid, highly-repeatable, ultra-high-quality results

• All housing and enclosure materials are sealed, purged, 304L stainless steel, preventing entry of processed materials into the enclosure

• Laptop-based human machine interface (HMI)*

• Modular, slide-out service units for processing accessories

• Multiple level security and access control

• Height-adjustable accepts many vessel types

• Temperature sensor - 316L stainless steel resistance temperature detectors (RTDs) with m12 connector, compatible with vacuum and temperature controls (optional feature)

ResonantAcoustic Mixing (RAM) Product Line Features OMNIRAM performance extends across the RAM product line, enabling new product development and break-through results not possible with traditional mixing methods. All RAM products use low frequency acoustic mixing at up to 100 g of acceleration for intense but low-shear mixing resulting in:

• 10 - 100x faster processing

• Highly reliable repeatability

• Direct scaling from lab to production without increasing processing time

• Capacities for: OmniRAM 11 lb/5 kg

• Exceptional ingredient distribution

• Hazardous material compatible options

Product Details

11 lb (5 kg) payload capacity, full featured, digitally controlled batch mixer for larger-than-bench-scale development, pilot and small-scale production and processing. Dimensions 70 H x 75 W x 35 D Power Specs 208-240 VAC, (50-60 Hz), 1 Phase
