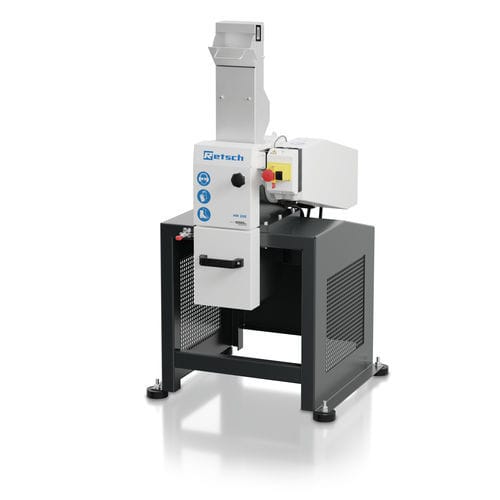

Food mill HM 200

glassfor plasticsfor ceramics

Hammer mills are used for crushing, pulverizing and deagglomeration of medium-hard, hard, brittle, tough and fibrous samples. The rugged RETSCH Hammer Mill HM 200 accepts large feed sizes up to 100 mm which can be reduced to less than 0.8 mm, depending on the sample properties. The mill is ideally suited for processing large volumes batchwise or continuously which ensures high sample throughput. Thanks to features like rugged design, easy handling and quick cleaning, the HM 200 is equally suitable for use in laboratories or pilot plants. High throughput & defined final fineness This diagram shows a comparison of the Hammer Mill HM 200 with two rotor mills. The extremely high sample throughput of the HM 200 is clearly visible. The HM 200 shows a good crushing efficiency of 125, which is the value of the maximum feed size divided by the finest achievable grind size. The SR 300 and SK 300 accept a maximum feed size of 25 mm (unlike the HM 200 which accepts sizes up to 100 mm) and crush particles to a size below 0.05 mm or 0.1 mm respectively - resulting in a higher crushing ratio. Excellent crushing performance Sieve range from 2 - 40 mm Feed size up to 100 mm, grind size < 0.8 mm Easy access to crushing chamber facilitates cleaning For batchwise or continuous grinding Connector for dust extraction Easy cleaning of the rotor and the hammers thanks to • Fold-back hopper to gain access to the crushing chamber from above • Additional fold back option in the middle part of the machine allows easy cleaning of rotor and hammers from below
