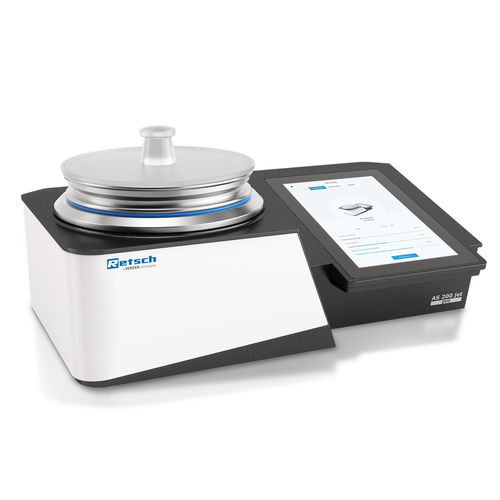

Dry sieving sieve shaker AS 200 jet pro

for powderslaboratoryfor food applications

Overview
For sieving specialists: With the AS 200 jet pro and the GMP-conform AS 200 jet pharma, laboratory teams get a space-saving and user-friendly all-in-one sieving machine. Sieve, weigh, and evaluate with a single device: combining state-of-the-art air jet sieving with a built-in balance ensures precise and reliable sieve analysis in the shortest amount of time. The integrated AS 200 jet pro software via touch display ensures smart processes with maximum ease of use.

Benefits

• All-in-One combining sieving, weighing and evaluation in one device
• Enhanced Process Reliability via checks and clever assistants
• Flexible & Precise Sieving of fine powders (10 µm – ~4 mm)
• GMP conform & Regulatory Readiness (pharma variant)

Key Features

• User and audit trail management (optional in the pharma version)
• Easy access to all operating parameters
• Small footprint (approx. 516 x 180 x 404 mm)
• Integrated internal balance (reading accuracy 0.01 g)
• Onboard computer with touch display (10.1" user interface)
• LAN and USB interface; connectivity for printers, barcode scanners, external balances
• Native software integration with guided sieving and evaluation
• Supports RETSCH test sieves Ø 203 mm (200 mm with adapter) and heights 25 / 50 mm

Internal Balance (patented integration)
The balance integrated into the machine design is extremely robust and has a high weighing readability of 0.01 g. The mechanical decoupling of the airtight sieving chamber enables error-free weighing without transferring the sieve, preventing material loss and enabling direct weighing during the sieving workflow.

Air jet sieving technology
The rotating slot nozzle generates an air jet that disperses and swirls the sample on the sieve. Smaller particles pass through the mesh and are transported to the cyclone or vacuum cleaner. The process protects samples by allowing individual selection of pressure, nozzle speed and sieve height, enables short sieving times (typically 2–3 minutes) and supports deagglomeration of particles.

Software & Digital Features
Native software with intuitive touch display controls the full process chain. Main software functions and capabilities:
Sieve Management: parameters and method setup
Parameter Setup: digital parameter setting and storable SOPs
Method Setup: guided sieving workflows and integrated SOPs
Weighing & Evaluation: weighing assistant, weigh-in tolerance, backweigh-tolerance, trend analysis and automatic result reporting
Data export and LIMS-ready connectivity with multiple export formats and Ethernet/USB support

Guided Sieving and Assistants

• Sieve-Check: barcode-based verification of selected method vs. test sieve
• Weighing-Assistant: recommends sieve-specific sample quantity based on bulk density
• Weigh-In-Tolerance: set deviation tolerances for weighing processes
• Backweigh-Tolerance: define expected residual mass and deviation limits
• Trend Analysis: compare sieving runs over time for test equipment monitoring and process monitoring

AS 200 jet pharma — Pharma-specific features
The AS 200 jet pharma variant includes features tailored for regulated environments and GMP compliance: software validation support (ISPE GAMP 5, EC GMP Annex 11), audit trail according to FDA 21 CFR Part 11, optional user management with configurable roles and e-signature enforcement, and an optional documentation package for qualification (QMP, FMEA, IQ, OQ).

Accessories & Options

• High-performance cyclone (optional) to recover fine particles and reduce vacuum cleaner filter load
• Option to connect an existing external qualified balance via USB (scale drivers for common makes available)
• Optional calibration / yearly service and calibration certificates

Functional Principle
The rotating slot nozzle below the sieve creates an air jet that swirls and distributes the sample. Particles smaller than the mesh are transported away by reverse air flow to the cyclone or vacuum. The air jet also continuously cleans the sieve mesh and aids deagglomeration.

Typical Sample Materials
Suitable for cement and construction materials, pharmaceuticals, ceramics, chemical products, cosmetics, food, minerals, pigments, plastics, powder coating, rubber, toner particles and washing powder.

Caractéristiques / spécifications techniques

• Applications: separation, fractioning, particle size determination
• Feed material: powders
• Measuring range: 10 µm – ~4 mm (depends on feed material and configuration)
• Typical batch/feed capacity: 0.3 – 100 g
• Max. number of fractions: 1 (or 2 using cyclone)
• Sieving motion: dispersion by air jet
• Touch screen: 10.1" display (intuitive GUI, guided sieving)
• Nozzle speed: digital, 5 – 80 min-1
• Time display: digital, 00:30 – 15:00 min
• Integrated balance: yes, readability 0.01 g; calibration accuracy 0.1 g
• Vacuum range: displayed 500 – 9,999 Pa (500–6,500 Pa typical / 5–99 mbar)
• Connectivity: 2× USB, Ethernet; barcode scanner, printer and peripheral support
• Storable SOPs: more than 40 (depends on storage capacity)
• Suitable sieve diameters: 203 mm (200 mm with adapter)
• Max. sieve stack height: 1 sieve (25 mm / 50 mm)
• Accessories: cyclone, external high-precision balance (optional)
• Electrical supply: 100–240 V, 50/60 Hz, single-phase
• Dimensions (W x H x D): approx. 516 x 180 x 404 mm
• Net weight: approx. 17 kg
• Standards: CE
