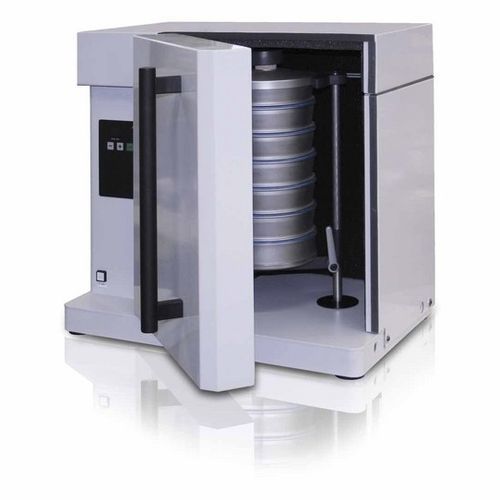

Dry sieving sieve shaker AS 200 tap

laboratory

The RETSCH AS 200 tap is suitable for dry sieving with test sieves of 200 mm or 8“ diameter. The combination of horizontal, circular sieving motions with vertical taps reproduces the principle of hand sieving. The uniform mechanical action ensures reliable and reproducible measurement results. This special type of sieving motion used by the AS 200 tap is specified in various standards for particle size analysis of materials such as activated carbon, diamonds, spices, metal powders, abrasives or cement. Operating the AS 200 tap is exceptionally easy and safe. The integrated clamping device allows for sieve stacks with up to 7 or 13 fractions, depending on the height of the sieve frame. The sieving time is set from 1 to 99 minutes via a digital display. The number of rotations and taps is fixed; the tapping motion can be deactivated, if required. A safety switch and an anti-trap protection provide maximum safety. Thanks to an integrated interface, the AS 200 tap can be controlled with the evaluation software EasySieve®. Functional Principle In the AS 200 tap, mechanical action is applied to the test sieves in two dimensions. In addition to a horizontal circular motion with 280 oscillations, a vertical tapping motion with 150 taps per minute helps the particles to pass the sieve apertures. This combination of sieving motions simulates hand sieving. The number of oscillations and taps is independent of the power frequency which makes the sieving results of the AS 200 tap comparable world wide.
