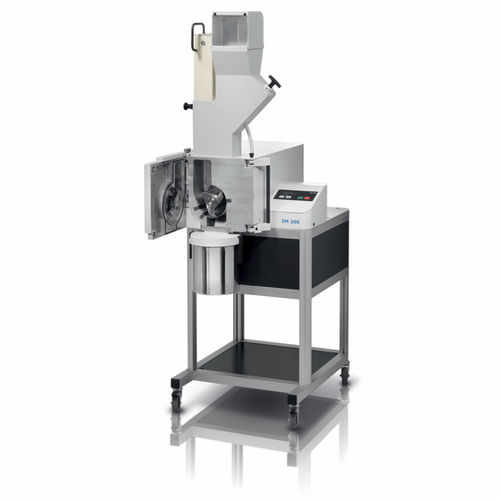

Fine cutting mill SM 300 | <0.25 - 20 mm
knifemiscellaneous wastefor plastics

fine cutting mill
fine cutting mill
fine cutting mill
fine cutting mill
Add to favorites
Compare this product

Characteristics

Technology
knife
Product application
miscellaneous waste, for plastics, food, for wood, for biomass
Other characteristics
for the pharmaceutical industry, heavy-duty, dry milling, batch, fine cutting, for sample preparation, laboratory, with cyclone separator
Rotational speed

Max.: 3,000 rpm (18,850 rad.min-1)

Min.: 700 rpm (4,398 rad.min-1)

Description

Cutting mills are designed for grinding soft, medium-hard, tough, elastic, fibrous materials, as well as heterogeneous mixes of products. The heavy-duty Cutting Mill SM 300 excels especially in the tough jobs where other cutting mills fail. The cutting mill is used successfully for a great variety of materials such as waste or electronic components. Analytical fineness is often achieved in one working run. The sample is only moderately warmed during the grinding process which makes the SM 300 suitable for grinding heat-sensitive materials. Another advantage is the freely selectable speed range from 700 to 3,000 rpm which can be adapted to application requirements. The optional cyclone-suction-combination should be used when grinding light sample materials or small quantities. A wide choice of bottom sieves, hoppers and collecting vessels are available for different requirements. The mill accepts feed sizes up to <60 x 80 mm and produces grind sizes down to 0.25 - 20 mm, depending on the sample material.
